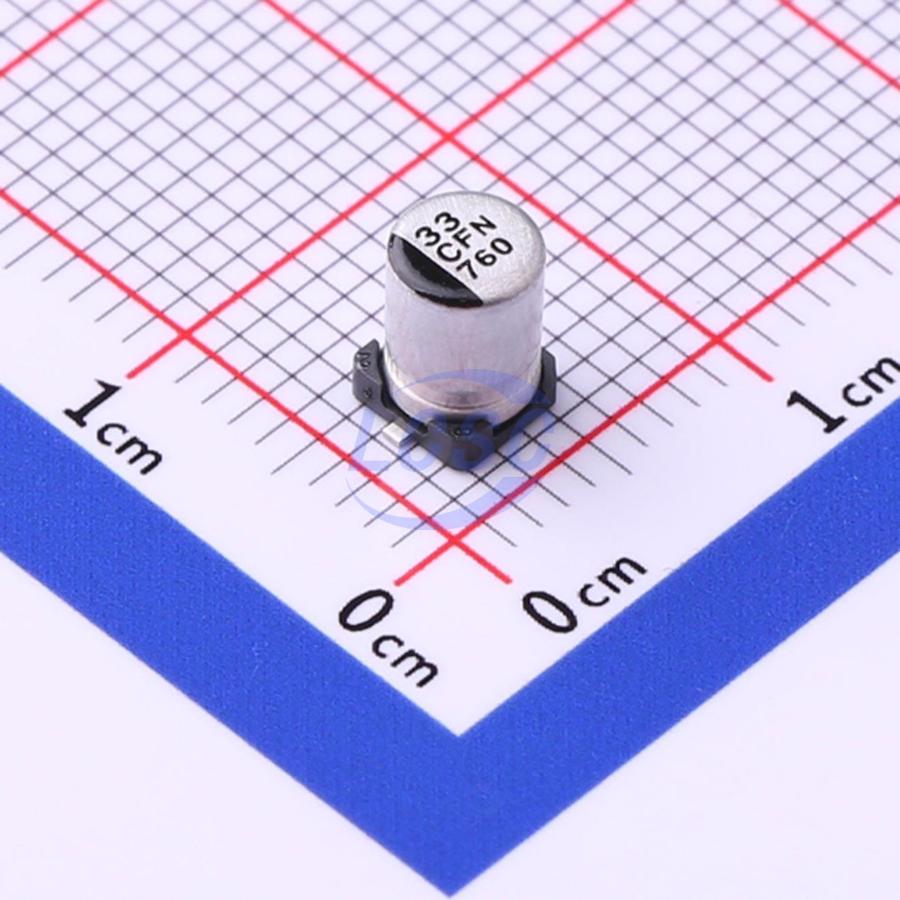

PANASONIC

EEEFN1C330R

33uF ±20% 16V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D4xL5.8mmROHS3 CompliantActive

CAP ALUM 33uF ±20% 16V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1C330R
Store part #: C494805
Package / case: SMD,D4xL5.8mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

190 in stock

#C494805

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹25.40	₹127.00
50+	₹20.06	₹1,003.00
150+	₹17.75	₹2,662.50
500+	₹14.90	₹7,450.00
2,000+	₹13.63	₹27,260.00
4,000+	₹12.86	₹51,440.00

Quantity (min 5, multiples of 5)

5 × ₹25.40

₹127.00

excl. GST

₹149.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

EEEFN1C330R

₹127.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 16V
Lifetime: 2000hrs@105℃
Capacitance: 33uF
Ripple Current: 90mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 1.35Ω@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.314 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
EEEHB1C330AP#C336475PANASONIC · SMD,D6.3xL5.8mm	PANASONIC	SMD,D6.3xL5.8mm	45	₹26.33 · 45 in stock	View
UWT1C330MCL1GB#C445072Nichicon · SMD,D6.3xL5.4mm	Nichicon	SMD,D6.3xL5.4mm	1,645	₹16.71 · 1,645 in stock	View
EEE1CA330WAR#C336433PANASONIC · SMD,D5xL5.4mm	PANASONIC	SMD,D5xL5.4mm	15	₹18.43 · 15 in stock	View
EEV336M016S9DAA#C2165062KEMET · SMD,D5xL5.4mm	KEMET	SMD,D5xL5.4mm	On request	₹8.00 · 0 in stock	View
EEV336M016A9DAA#C5687044KEMET · SMD,D5xL5.65mm	KEMET	SMD,D5xL5.65mm	On request	₹24.18 · 0 in stock	View
