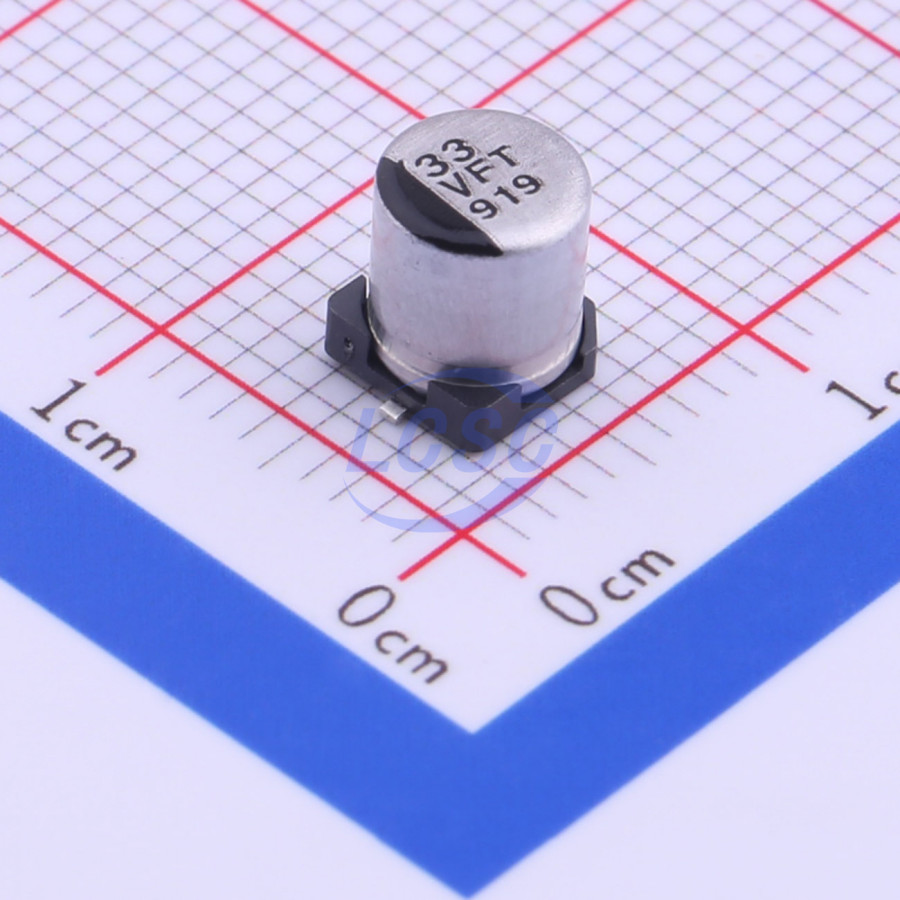

EEEFT1V330AR
33uF ±20% 35V Aluminum Electrolytic Capacitors 2000hrs@105℃
SMD,D5xL5.8mmROHS3 CompliantActive
CAP ALUM 33uF ±20% 35V SMD
- Manufacturer
- PANASONIC
- Manufacturer part #
- EEEFT1V330AR
- Store part #
- C336791
- Package / case
- SMD,D5xL5.8mm
- Category
- Aluminum Electrolytic Capacitors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
350 in stock
#C336791
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.00 | ₹165.00 |
| 50+ | ₹26.22 | ₹1,311.00 |
| 150+ | ₹23.32 | ₹3,498.00 |
| 1,000+ | ₹19.58 | ₹19,580.00 |
| 2,000+ | ₹17.97 | ₹35,940.00 |
| 5,000+ | ₹17.00 | ₹85,000.00 |
5 × ₹33.00
₹165.00
excl. GST
₹194.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
EEEFT1V330AR
₹165.00 for 5 + GST
Specifications
- Tolerance
- ±20%
- Voltage Rating
- 35V
- Lifetime
- 2000hrs@105℃
- Capacitance
- 33uF
- Ripple Current
- 240mA@100kHz
- Polarity type
- Polarized
- Operating Temperature
- -55℃~+105℃
- Equivalent Series Resistance(ESR)
- 360mΩ@100kHz
- Height - Seated (Max)
- 6.1mm
- Diameter
- 5mm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.525 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EEEFN1V330R#C494836PANASONIC · SMD,D5xL5.8mm | PANASONIC | SMD,D5xL5.8mm | 810 | ₹29.75 · 810 in stock | View |
 | UUD1V330MCL1GS#C445251Nichicon · SMD,D6.3xL5.8mm | Nichicon | SMD,D6.3xL5.8mm | 2,530 | ₹23.80 · 2,530 in stock | View |
 | EEEHB1V330AP#C413633PANASONIC · SMD,D8xL6.2mm | PANASONIC | SMD,D8xL6.2mm | 2 | ₹55.65 · 2 in stock | View |
 | EMVA350ARA330MF55G#C2886569NCC · SMD,D6.3xL5.2mm | NCC | SMD,D6.3xL5.2mm | 10 | ₹14.82 · 10 in stock | View |
 | UWT1V330MCL6GS#C340739Nichicon · SMD,D6.3xL5.8mm | Nichicon | SMD,D6.3xL5.8mm | 165 | ₹16.06 · 165 in stock | View |
