PANASONICDatasheet (PDF)

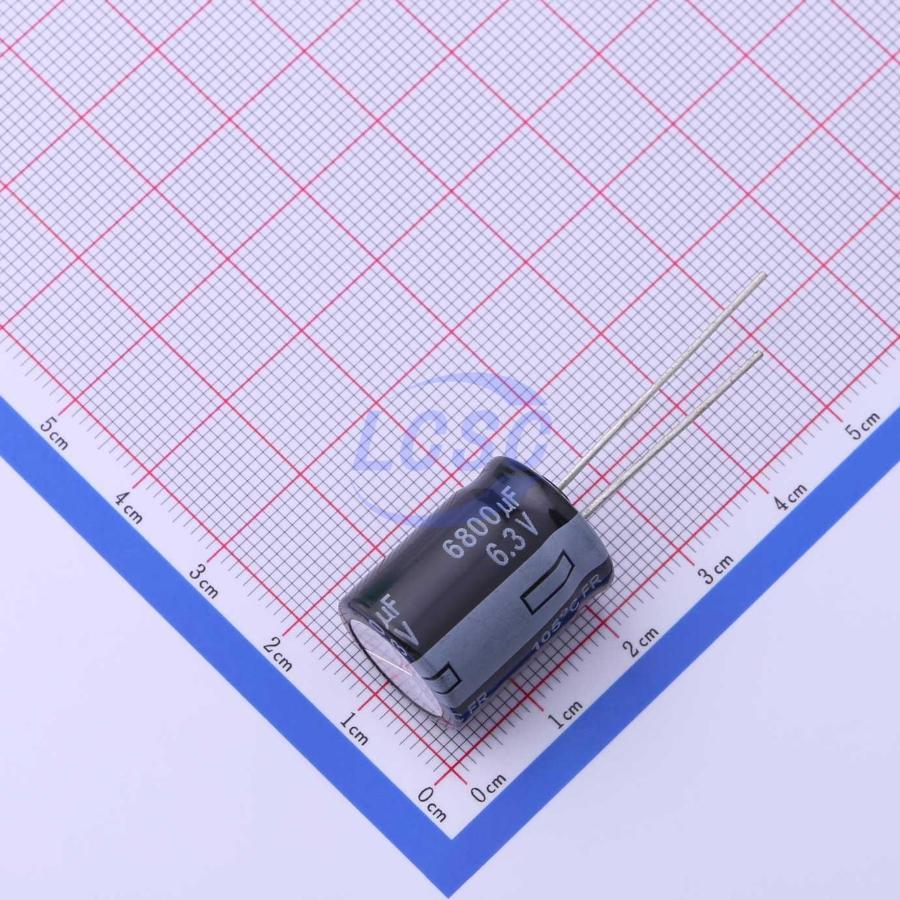

EEUFR0J682S
6800uF 6.3V Aluminum Electrolytic Capacitors Through Hole,D16xL20mm 10000hrs@105℃
Through Hole,D16xL20mmROHS3 CompliantActive
CAP ALUM 6800uF ±20% 6.3V TH
- Manufacturer
- PANASONIC
- Manufacturer part #
- EEUFR0J682S
- Store part #
- C407866
- Package / case
- Through Hole,D16xL20mm
- Category
- Aluminum Electrolytic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
124 in stock
#C407866
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.29 | ₹144.29 |
| 10+ | ₹119.96 | ₹1,199.60 |
| 30+ | ₹106.49 | ₹3,194.70 |
| 100+ | ₹91.27 | ₹9,127.00 |
| 500+ | ₹84.54 | ₹42,270.00 |
| 1,000+ | ₹81.50 | ₹81,500.00 |
1 × ₹144.29
₹144.29
excl. GST
₹170.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per bag
EEUFR0J682S
₹144.29 for 1 + GST
Specifications
- Tolerance
- ±20%
- Voltage Rating
- 6.3V
- Lifetime
- 10000hrs@105℃
- Capacitance
- 6800uF
- Ripple Current
- 3.3A@100kHz
- Pin Spacing
- 7.5mm
- Polarity type
- Polarized
- Operating Temperature
- -40℃~+105℃
- Equivalent Series Resistance(ESR)
- 17mΩ@100kHz
- Height - Seated (Max)
- 20mm
- Diameter
- 16mm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 50 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.24 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EKY-6R3ELL682ML25S#C709512NCC · Through Hole,D16xL25mm | NCC | Through Hole,D16xL25mm | 354 | ₹83.84 · 354 in stock | View |
 | 6.3YXJ6800M12.5X25#C1597482Rubycon · Through Hole,D12.5xL25mm | Rubycon | Through Hole,D12.5xL25mm | 984 | ₹83.04 · 984 in stock | View |
| EEU-FR0J682SB#C1590243PANASONIC · Through Hole,D16xL20mm | PANASONIC | Through Hole,D16xL20mm | On request | ₹153.36 · 0 in stock | View | |
| UHW0J682MHD6#C1587208Nichicon · Through Hole,D16xL20mm | Nichicon | Through Hole,D16xL20mm | On request | ₹114.56 · 0 in stock | View | |
| UHV0J682MHD6#C1498481Nichicon · Through Hole,D16xL20mm | Nichicon | Through Hole,D16xL20mm | On request | ₹125.62 · 0 in stock | View | |
