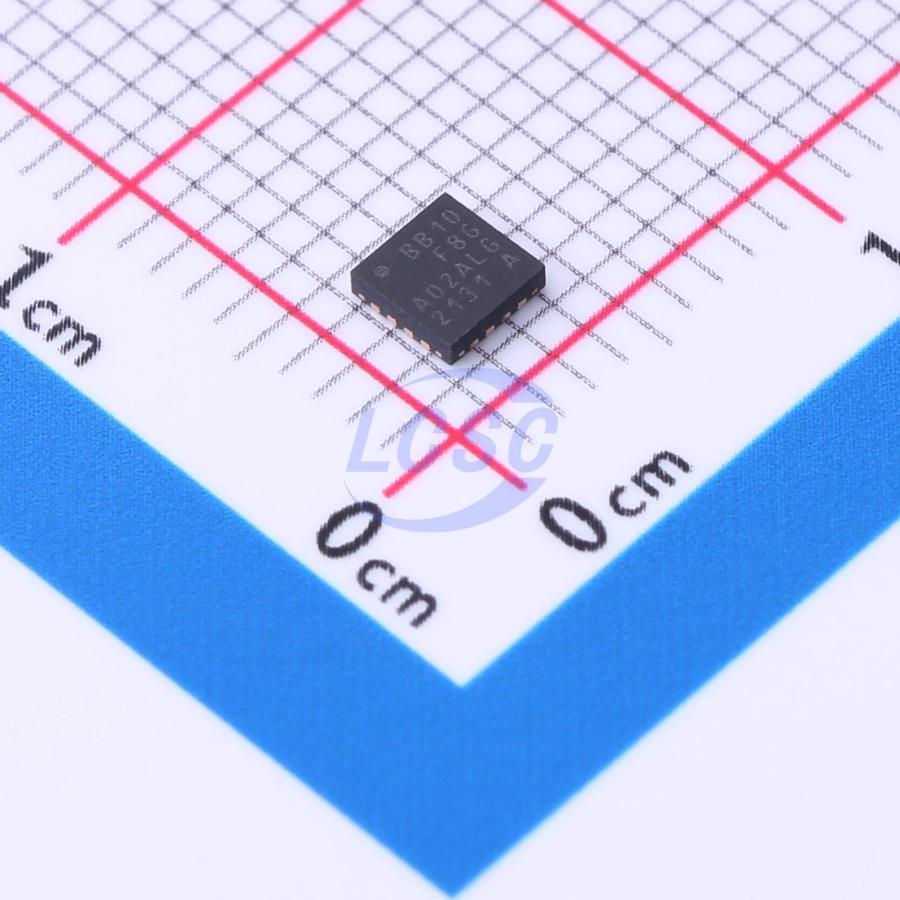

EFM8BB10F8G-A-QFN20R

The EFM8BB1, part of the Busy Bee family of MCUs, is a multipurpose line of 8-bit microcontrollers with a comprehensive feature set in small packages. These devices offer high-value by integrating advanced analog and communication peripherals into small packages, making them ideal for space-constrained applications. With an efficient 8051 core, enhanced pulse-width modulation, and precision analog, the EFM8BB1 family is also optimal for embedded applications.

Applications

• Motor control
• Medical equipment
• Consumer electronics
• Lighting systems
• Sensor controllers
• I/O port expander

Key features

• Pipelined 8-bit C8051 core with 25 MHz maximum operating frequency
• Up to 18 multifunction, 5 V tolerant I/O pins
• One 12-bit Analog to Digital converter (ADC)
• Two low-current analog comparators
• Integrated temperature sensor
• 3-channel enhanced PWM / PCA
• Four 16-bit timers
• UART, SPI and SMBus/I2C
• Priority crossbar for flexible pin mapping
• Pipelined CIP-51 Core
• Fully compatible with standard 8051 instruction set
• 70% of instructions execute in 1-2 clock cycles
• 25 MHz maximum operating frequency
• Up to 8 kB flash memory, in-system re-programmable from firmware.
• Up to 512 bytes RAM (including 256 bytes standard 8051 RAM and 256 bytes on-chip XRAM)
• Internal LDO regulator for CPU core voltage
• Power-on reset circuit and brownout detectors
• All pins 5 V tolerant under bias
• Flexible peripheral crossbar for peripheral routing
• 5 mA source, 12.5 mA sink allows direct drive of LEDs
• Internal 24.5 MHz oscillator with ±2% accuracy
• Internal 80 kHz low-frequency oscillator
• External CMOS clock option
• 3-channel programmable counter array (PCA) supporting PWM, capture/compare, and frequency output modes
• 4 x 16-bit general-purpose timers
• Independent watchdog timer, clocked from the low frequency oscillator
• UART
• SPI Master / Slave
• SMBus/I2C Master / Slave
• 16-bit CRC unit, supporting automatic CRC of flash at 256-byte boundaries
• 12-Bit Analog-to-Digital Converter (ADC)
• 2 x Low-current analog comparators with adjustable reference
• On-Chip, Non-Intrusive Debugging
• Full memory and register inspection
• Four hardware breakpoints, single-stepping
• Pre-loaded UART bootloader
• Temperature range -40 to 85 ℃ or -40 to 125 ℃
• Single power supply 2.2 to 3.6 V
• QSOP24, SOIC16, and QFN20 packages
• CIP-51 Core running up to 25 MHz
• Two Internal Oscillators (24.5 MHz and 80 kHz)
• SMBus / I2C
• SPI
• UART
• 3-Channel Programmable Counter Array (PWM, Clock Generation, Capture/Compare)
• 4 16-bit Timers
• 2 Analog Comparators
• 12-bit Analog-to-Digital Converter with integrated multiplexer, voltage reference, and temperature sensor
• 16-bit CRC Unit
• AEC-Q100 qualified
• Pre-loaded UART bootloader
