EG MicroDatasheet (PDF)

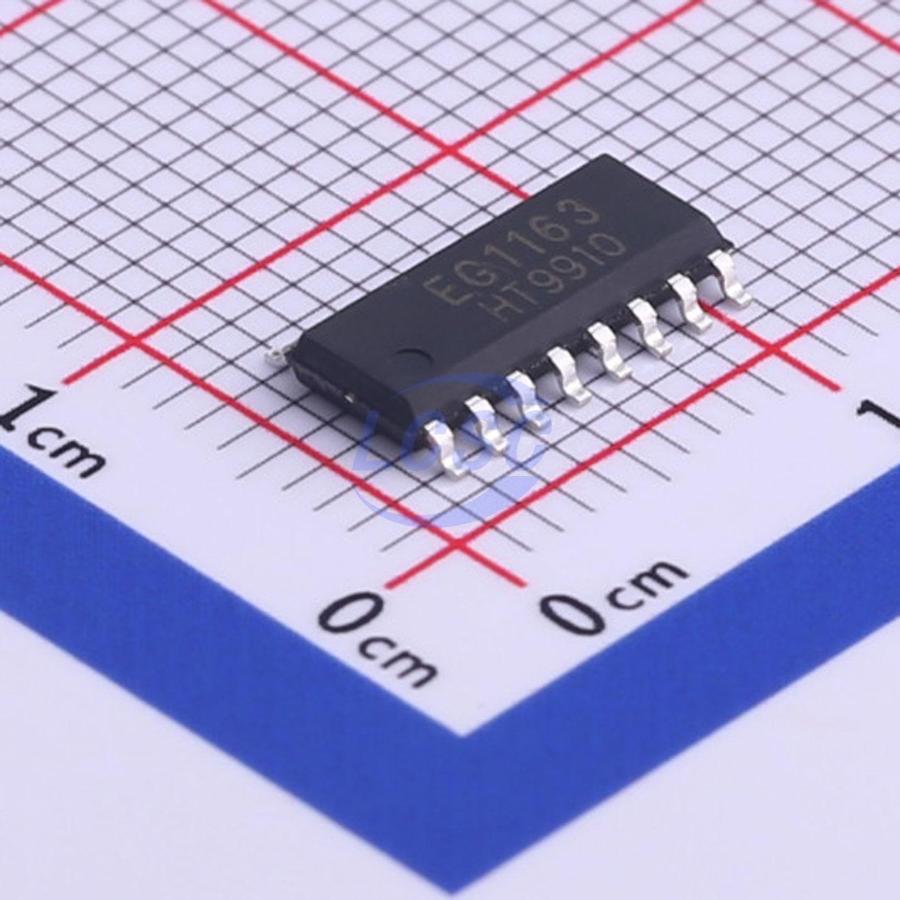

EG1163
Buck Switching Regulator IC Adjustable 1 Output SOP-16
SOP-16ROHS CompliantActive
High-voltage and high-current step-down switching power supply chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1163
- Store part #
- C480647
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,224 in stock
#C480647
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.38 | ₹118.38 |
| 10+ | ₹96.71 | ₹967.10 |
| 30+ | ₹85.86 | ₹2,575.80 |
| 100+ | ₹75.24 | ₹7,524.00 |
| 500+ | ₹63.53 | ₹31,765.00 |
| 1,000+ | ₹60.28 | ₹60,280.00 |
1 × ₹118.38
₹118.38
excl. GST
₹139.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG1163
₹118.38 for 1 + GST
Specifications
- Operating Temperature
- -45℃~+125℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 65kHz~80kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 10V~20V
- Switch tube (built-in/external)
- External
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.268 g
Overview
EG1163 is a high-voltage, high-current step-down DC-DC power management IC with integrated voltage reference, oscillator, error amplifier, current limiting protection, short-circuit protection, and half-bridge driver. It is well-suited for high-voltage, high-current applications and supports up to 600V supply voltage input when paired with external high-voltage MOSFETs.
Applications
- Electric motorcycle converters
- Electric bicycle converters
- High-voltage analog/digital systems
- Industrial control systems
- Telecom power systems
- Ethernet PoE
- Portable mobile device inverter systems
Key features
- Synchronous freewheeling topology, supports high-voltage high-current applications
- Adjustable operating frequency via single external capacitor (up to 300KHz)
- UVLO undervoltage lockout:
- Vcc turn-on threshold 16.5V - EG1163
- Vcc turn-off threshold 8V - EG1163
- Vcc turn-on threshold 8.5V - EG1163S
- Vcc turn-off threshold 7.5V - EG1163S
- Cycle-by-cycle current limiting via MOSFET on-resistance
- Output short-circuit protection for battery charging
- Package: SOP16
