EG MicroDatasheet (PDF)

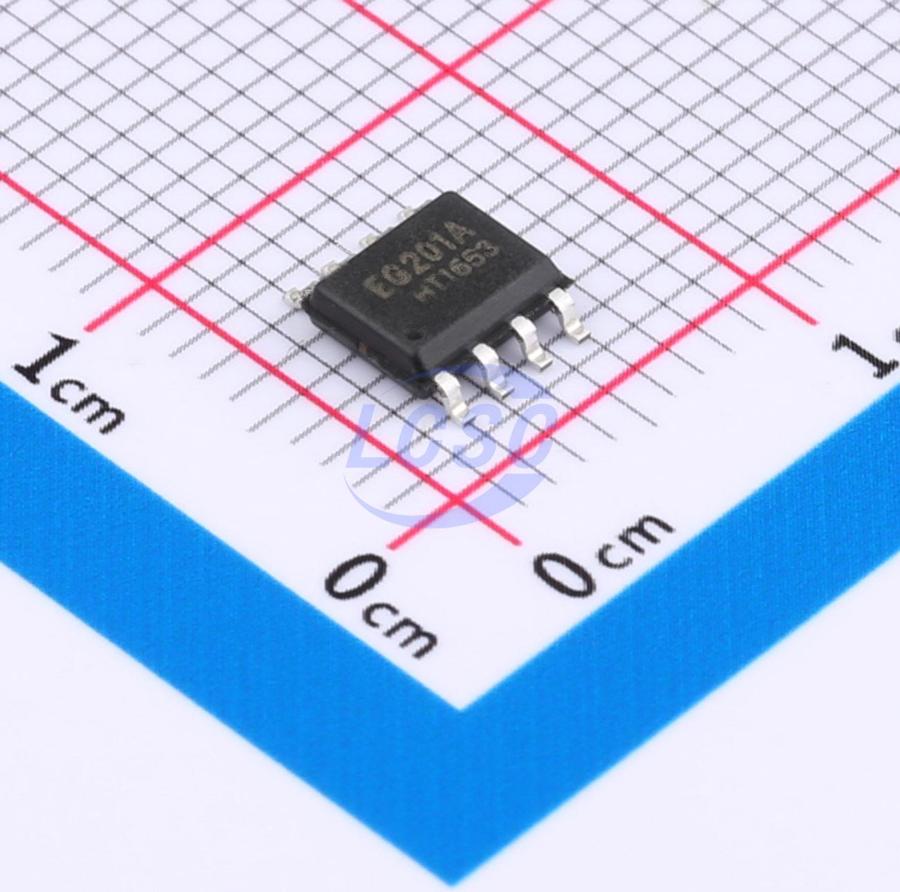

EG201A
-40℃~+100℃ SOP-8 Specialized RoHS
SOP-8ROHS CompliantSold out at source
Rolling code encoding chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG201A
- Store part #
- C81681
- Package / case
- SOP-8
- Category
- Specialized
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,025 in stock
#C81681
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.02 | ₹125.10 |
| 50+ | ₹19.77 | ₹988.50 |
| 200+ | ₹17.52 | ₹3,504.00 |
| 500+ | ₹14.71 | ₹7,355.00 |
| 2,500+ | ₹13.45 | ₹33,625.00 |
| 5,000+ | ₹12.71 | ₹63,550.00 |
5 × ₹25.02
₹125.10
excl. GST
₹147.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
EG201A
₹125.10 for 5 + GST
Specifications
- Voltage Rating
- 3.5V~13V
- Features
- Wake-up function;Non-volatile configuration storage;Enable/shutdown function
- Operating Temperature
- -40℃~+100℃
- Supply Current
- 2.3mA
- Quiescent Supply Current
- 1uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.201 g
Overview
EG201A is a rolling code encoder IC designed for Remote Keyless Entry (RKE) systems. It features high security, a compact package, and ultra-low standby power consumption. The chip employs 64-bit encryption internally, making it impossible to crack. With a standby current of less than 1uA, it ensures extended battery life. An integrated EEPROM allows flexible configuration of various operating states, with data retention of over 10 years.
Applications
- Automotive RKE systems
- Automotive alarm systems
- Automotive immobilizers
- Gate and garage door openers
- Identification systems
- Anti-theft automatic alarm systems
Key features
- Operating voltage: 3.5V - 13.0V
- Maximum quiescent current: <1uA
- Integrated internal power management with auto-shutdown
- On-chip EEPROM programmable 28-bit serial number
- Programmable 64-bit encryption key, non-readable
- Unique rolling code transmitted each time
- 4-button inputs, 15 key combinations
- Integrated internal pull-down resistors on keys
- Selectable rolling code baud rate
- Low battery voltage indication
- Non-volatile synchronization data
- Package: SOP8
