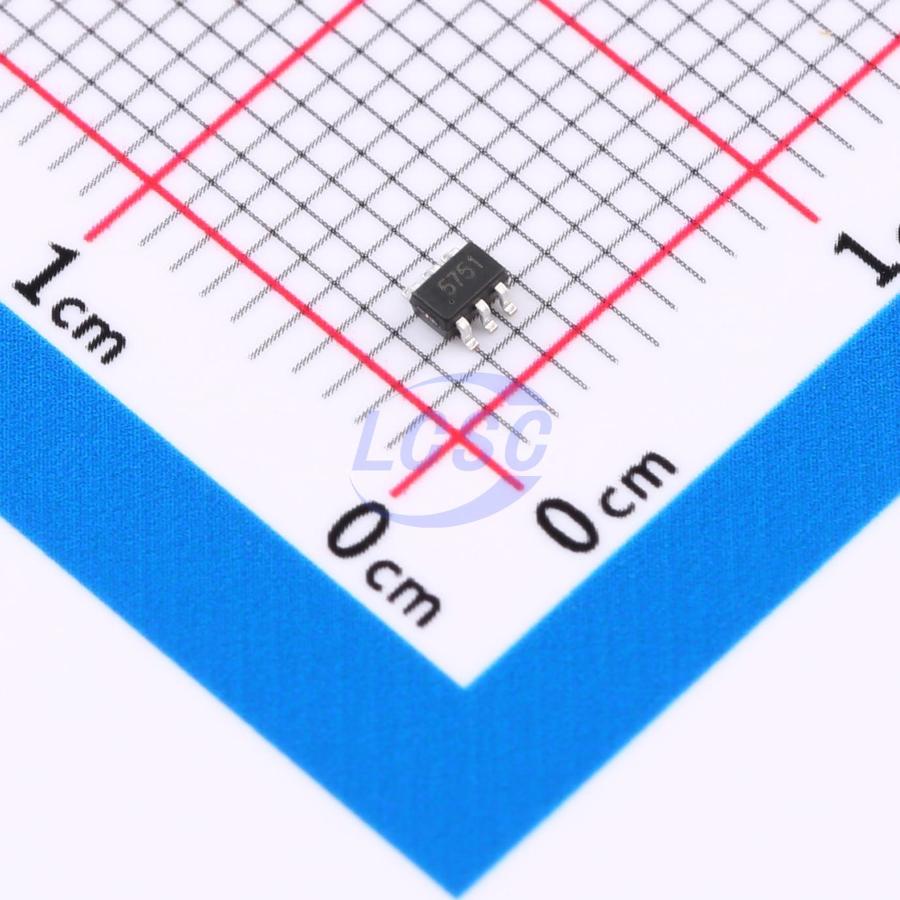

EnergyMath

EMS3157GW

IC SWITCH 2.5Ω@5.5V SOT-363

SOT-363RoHSActive

Low Voltage and High Speed SPDT Analog Switch with True Isolation

Manufacturer: EnergyMath
Manufacturer part #: EMS3157GW
Store part #: C49186232
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,450 in stock

#C49186232

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.89	₹68.90
100+	₹5.45	₹545.00
300+	₹4.72	₹1,416.00
3,000+	₹4.19	₹12,570.00
6,000+	₹3.76	₹22,560.00
9,000+	₹3.53	₹31,770.00

Quantity (min 10, multiples of 10)

10 × ₹6.89

₹68.90

excl. GST

₹81.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EMS3157GW

₹68.90 for 10 + GST

Specifications

Features: Glitch-free switching;Fault protection
Operating Temperature: -40℃~+125℃
Number of Channels: 1
Voltage - Supply: 1.5V~5.5V
Ron: 2.5Ω@5.5V
Con: 12pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.031 g

Overview

EMS3157 is a single-pole double-throw low on-resistance analog switch. It operates over a supply voltage range of 1.5V to 5.5V. The device features low on-resistance and excellent on-resistance matching, with break-before-make functionality to prevent signal distortion when switching signals from one channel to another. The device achieves true isolation. Even when input A exceeds the supply voltage VCC, only a minimal amount of current flows back to the supply.
