Everest-semi(Everest Semiconductor)Datasheet (PDF)

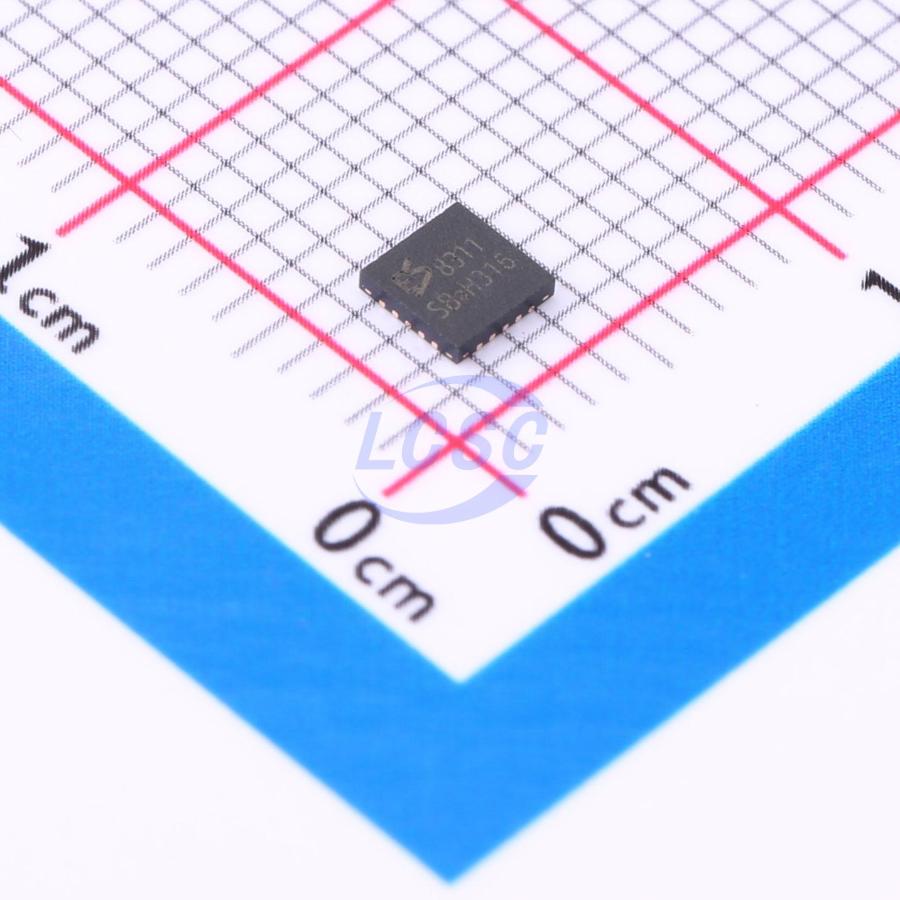

ES8311
1.8V~3.3V 8kHz~96kHz QFN-20-EP(3x3) Signal Switches, Multiplexers, Decoders
QFN-20-EP(3x3)RoHSActive
Low Power Mono Audio CODEC
- Manufacturer
- Everest-semi(Everest Semiconductor)
- Manufacturer part #
- ES8311
- Store part #
- C962342
- Package / case
- QFN-20-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95,516 in stock
#C962342
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.25 | ₹61.25 |
| 10+ | ₹46.98 | ₹469.80 |
| 30+ | ₹40.12 | ₹1,203.60 |
| 100+ | ₹33.79 | ₹3,379.00 |
| 500+ | ₹31.44 | ₹15,720.00 |
| 1,000+ | ₹30.36 | ₹30,360.00 |
1 × ₹61.25
₹61.25
excl. GST
₹72.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ES8311
₹61.25 for 1 + GST
Specifications
- Type
- Encoder/decoder
- Voltage - Supply
- 1.8V~3.3V
- Interface
- I2C;I2S
- Operating Temperature
- -40℃~+105℃
- Sampling Rate
- 8kHz~96kHz
- Function
- Master-slave clock negotiation;Mute control
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
Applications
- Automotive
- Phone
- Toy
- 2-way radio
- Dash cam
- IP Camera
- DVR, NVR
- Surveillance
Key features
- High performance and low power multibit delta-sigma audio ADC and DAC
- I2S/PCM master or slave serial data port 256/384Fs, USB 12/24 MHz and other non standard audio system clocks
- I²C interface
- 24-bit, 8 to 96 kHz sampling frequency
- 100 dB signal to noise ratio, -93 dB THD+N
- One pair of analog input with differential input option
- Low noise pre-amplifier
- Noise reduction filters
- Auto level control (ALC) and noise gate
- Support analog and digital microphone
- 24-bit, 8 to 96 kHz sampling frequency
- 110 dB signal to noise ratio, -80 dB THD+N
- One pair of analog output with headphone driver and differential output option
- Dynamic range compression
- Pop and click noise suppression
- 1.8V to 3.3V operation
- 14 mW playback and record
- Low standby current
