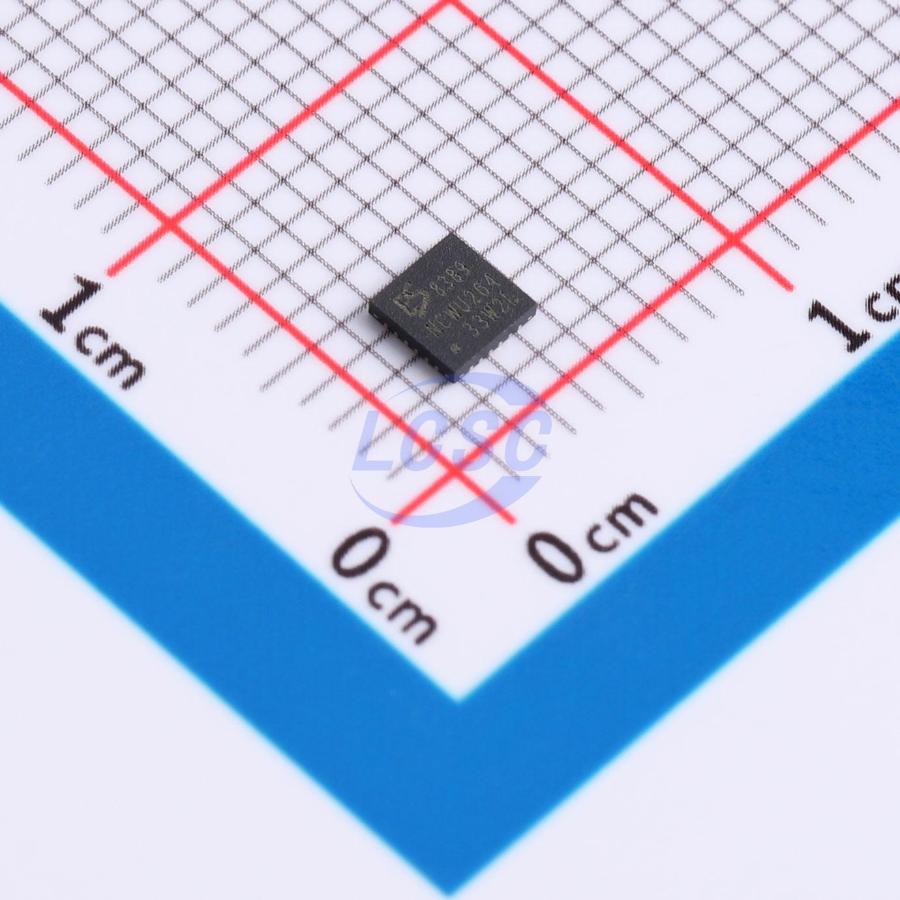

Everest-semi(Everest Semiconductor)Datasheet (PDF)
ES8389
Encoder/decoder 8kHz~192kHz QFN-24(3x3) Audio Special Purpose
QFN-24(3x3)RoHSActive
- Manufacturer
- Everest-semi(Everest Semiconductor)
- Manufacturer part #
- ES8389
- Store part #
- C22380673
- Package / case
- QFN-24(3x3)
- Category
- Audio Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,839 in stock
#C22380673
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.79 | ₹117.79 |
| 10+ | ₹95.40 | ₹954.00 |
| 30+ | ₹84.10 | ₹2,523.00 |
| 100+ | ₹72.80 | ₹7,280.00 |
| 500+ | ₹66.28 | ₹33,140.00 |
| 1,000+ | ₹62.80 | ₹62,800.00 |
1 × ₹117.79
₹117.79
excl. GST
₹138.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ES8389
₹117.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Type
- Encoder/decoder
- Features
- Master-slave clock negotiation;Mute control;On-chip digital gain
- Interface
- I2C;I2S
- Resolution (Bits)
- 8kHz~192kHz
- Voltage - Supply
- 1.6V~3.6V;3V~3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.074 g
Overview
Applications
- Automotive electronics
- Monitoring systems
- General applications
Key features
- High-performance, low-power multi-bit Δ-Σ architecture audio ADC and DAC
- I²S/PCM serial data port with master/slave mode support
- Supports 256/384Fs and USB 12/24 MHz audio system clocks
- I²C interface
- Stereo ADC: 24-bit resolution, sample rate 8 ~ 192 kHz, SNR 101 dB, THD+N -90 dB, one pair of analog inputs with differential option, built-in low-noise preamplifier, automatic level control, analog and digital microphone support
- Stereo DAC: 24-bit resolution, sample rate 8 ~ 192 kHz, SNR 110 dB, THD+N -85 dB, two pairs of analog outputs with headphone driver and differential output options, line-in to line-out mixing, pop and click suppression
- Low power consumption: 1.8V ~ 3.3V operating voltage, milliwatt-level playback and recording power, low standby current
