InfineonDatasheet (PDF)

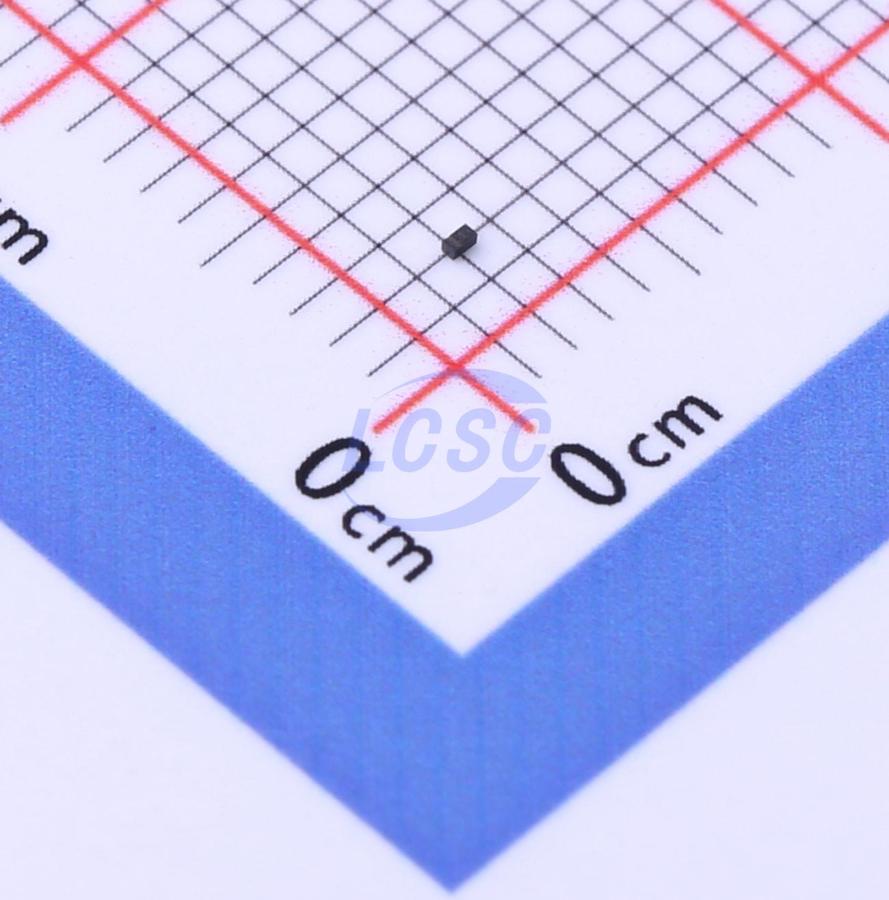

ESD101B102ELSE6327XTSA1
30VC Clamp 2A Ipp ESD DIODE TSSLP-2
TSSLP-2ROHS3 CompliantActive
ESD DIODE 5.5VWM 30VC TSSLP-2
- Manufacturer
- Infineon
- Manufacturer part #
- ESD101B102ELSE6327XTSA1
- Store part #
- C672092
- Package / case
- TSSLP-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C672092
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.83 | ₹64.15 |
| 50+ | ₹12.49 | ₹624.50 |
| 150+ | ₹12.25 | ₹1,837.50 |
| 500+ | ₹12.01 | ₹6,005.00 |
5 × ₹12.83
₹64.15
excl. GST
₹75.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
ESD101B102ELSE6327XTSA1
₹64.15 for 5 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A
- Peak Pulse Power Dissipation (Ppp)
- 30W
- Voltage - Breakdown
- 7.3V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 20nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.008 g
Overview
TVS (transient voltage suppressor) Bi-directional, 5.5 V, 0.1 pF, 0201, 0402, RoHS and halogen free compliant
Applications
- Super high speed interface
- RF antenna
Key features
- ESD/transient protection of high speed data lines according to: IEC61000-4-2 (ESD): ±14 kV (air), ±12 kV (contact) IEC61000-4-4 (EFT): ±1.5 kV/±30 A (5/50 ns) IEC61000-4-5 (surge): ±2 A (8/20 μs)
- Bi-directional working voltage up to: VBWM = ±5.5 V
- Extremely low capacitance Cl = 0.1 pF (typical) at f = 1 GHz
- Clamping voltage: VC⌊ = 30 V (typical) at ITLP = 16 A with RDYN = 1.5 Ω (typical)
- Very low reverse current: IR < 0.1 nA
- Small form factor SMD sizes 0201 and 0402 low profile
- Bi-directional and symmetric 1/ν characteristics for optimized design/assembly
