TECH PUBLICDatasheet (PDF)

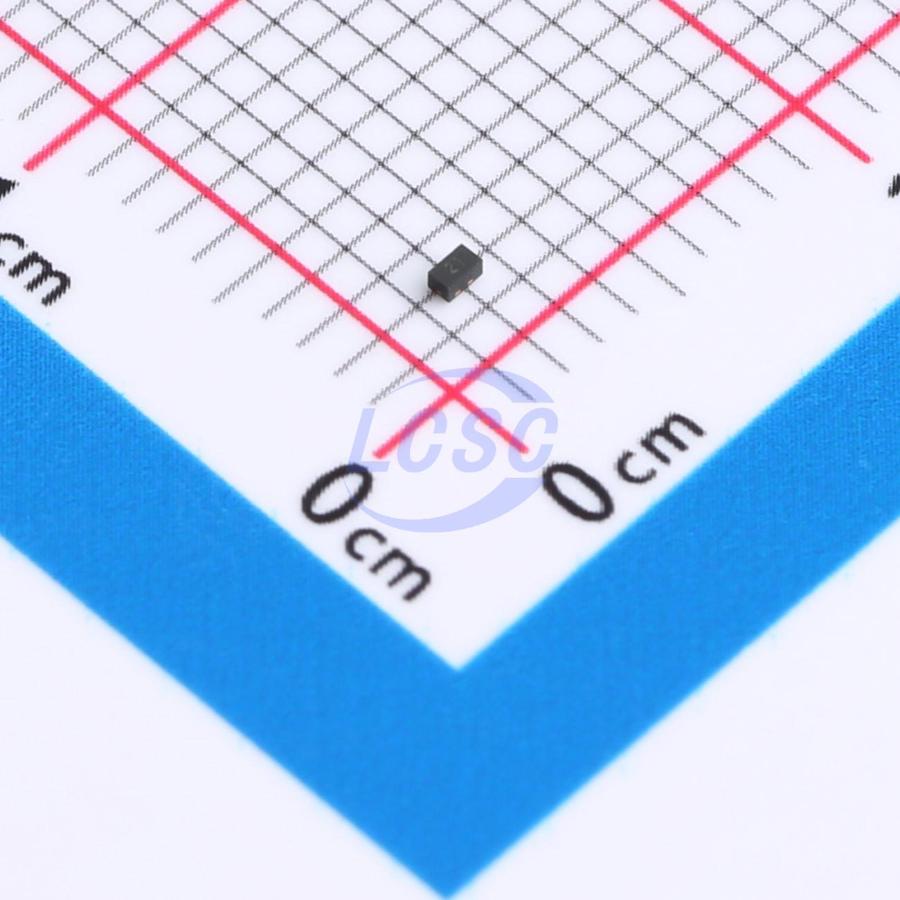

ESD105-B1-02EL
10VC Clamp 5.5A@8/20us Ipp ESD DIODE DFN1006-2(0402)
DFN1006-2(0402)RoHSActive
ESD DIODE 5VWM 10VC DFN1006-2(0402)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD105-B1-02EL
- Store part #
- C42460226
- Package / case
- DFN1006-2(0402)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,180 in stock
#C42460226
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.21 | ₹84.20 |
| 200+ | ₹3.31 | ₹662.00 |
| 600+ | ₹2.80 | ₹1,680.00 |
| 2,000+ | ₹2.50 | ₹5,000.00 |
| 10,000+ | ₹2.24 | ₹22,400.00 |
| 20,000+ | ₹2.10 | ₹42,000.00 |
20 × ₹4.21
₹84.20
excl. GST
₹99.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ESD105-B1-02EL
₹84.20 for 20 + GST
Specifications
- Clamping Voltage
- 10V
- Peak Pulse Current (Ipp)
- 5.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 55W@8/20us
- Voltage - Breakdown
- 8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.012 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- USB power and data line
Key features
- Low operating voltage: 5V
- Ultra low capacitance: 0.3pF(Typ)
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 5.5A (8/20μs)
- 2-pin leadless package
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
