TECH PUBLICDatasheet (PDF)

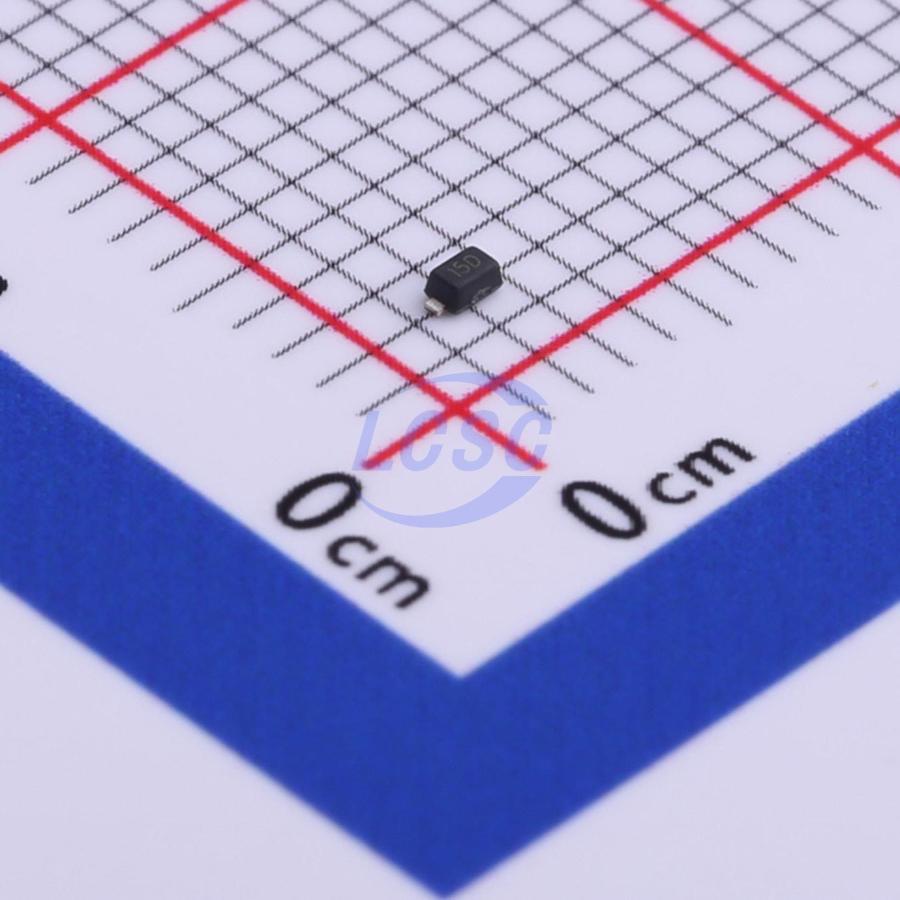

ESD15VB6-523
25VC Clamp 6A@8/20us Ipp SOD-523
SOD-523RoHSActive
15VWM 25VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD15VB6-523
- Store part #
- C521909
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C521909
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.22 | ₹82.20 |
| 100+ | ₹6.54 | ₹654.00 |
| 300+ | ₹5.70 | ₹1,710.00 |
| 3,000+ | ₹4.60 | ₹13,800.00 |
| 6,000+ | ₹4.10 | ₹24,600.00 |
| 9,000+ | ₹3.85 | ₹34,650.00 |
10 × ₹8.22
₹82.20
excl. GST
₹97.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD15VB6-523
₹82.20 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 16V
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
Key features
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage: 15V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test: Air discharge: ±30 kV, Contact discharge: ±30 kV
- IEC 61000 - 4 - 5 (Lightning): 6A (8/20 μs)
