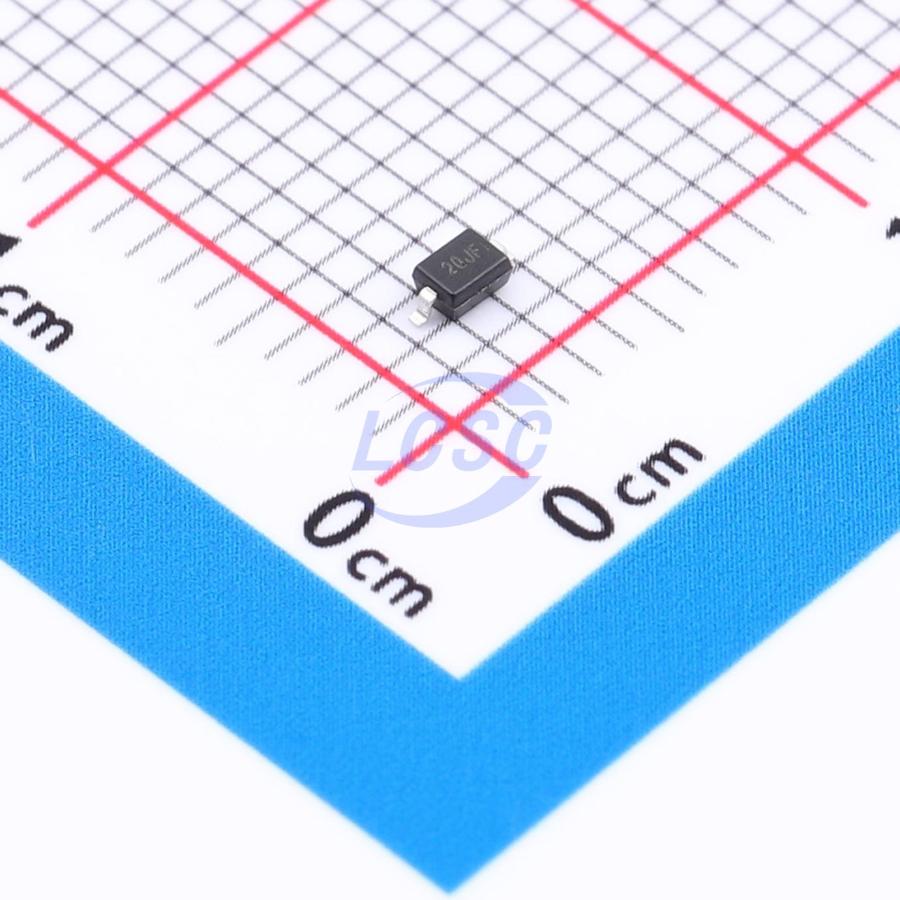

ESD1LIN24DYFR
42V 4.3A@8/20us 159.1W@8/20us 35.5V 24V SOD-323 TVS Diodes RoHS
ESD DIODE 24VWM 42VC SOD-323
- Manufacturer
- TI
- Manufacturer part #
- ESD1LIN24DYFR
- Store part #
- C20345389
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,525 in stock
#C20345389
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.60 | ₹88.00 |
| 50+ | ₹13.93 | ₹696.50 |
| 150+ | ₹12.13 | ₹1,819.50 |
| 500+ | ₹10.54 | ₹5,270.00 |
| 3,000+ | ₹10.11 | ₹30,330.00 |
| 6,000+ | ₹9.83 | ₹58,980.00 |
5 × ₹17.60
₹88.00
excl. GST
₹103.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD1LIN24DYFR
₹88.00 for 5 + GST
Specifications
- Clamping Voltage
- 42V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 159.1W@8/20us
- Voltage - Breakdown
- 35.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The ESD1LIN24 is a single-channel low capacitance bidirectional ESD protection device for local interconnect network (LIN). This device is rated to dissipate contact ESD strikes beyond the maximum level specified in the IEC 61000-4-2 international standard (±30 kV Contact, ±30 kV Airgap). The low dynamic resistance and low clamping voltage help protect systems against transient events. This protection is key in safety systems that require a high level of robustness and reliability.
Applications
- USB power delivery (USB-PD) VBUS protection
- IO protection
- Industrial control networks: Local interconnect network (LIN)
- Single line CAN ESD protection
- DeviceNet
- Smart distribution systems
Key features
- IEC 61000-4-2 level 4 ESD protection: ±30 kV contact discharge, ±30 kV air-gap discharge
- Robust surge protection: IEC 61000-4-5 (8/20 µs): 4.3 A
- 24-V working voltage
- Bidirectional ESD protection
- Low clamping voltage protects downstream components
- Temperature range: -55°C to +150°C
- I/O capacitance = 2.3 pF (typical)
- Offered in industry standard package: SOD-323 (DYF)
- Leaded packages used for automatic optical inspection (AOI)
Alternatives
Similar parts — check the datasheet before substituting.
