InfineonDatasheet (PDF)

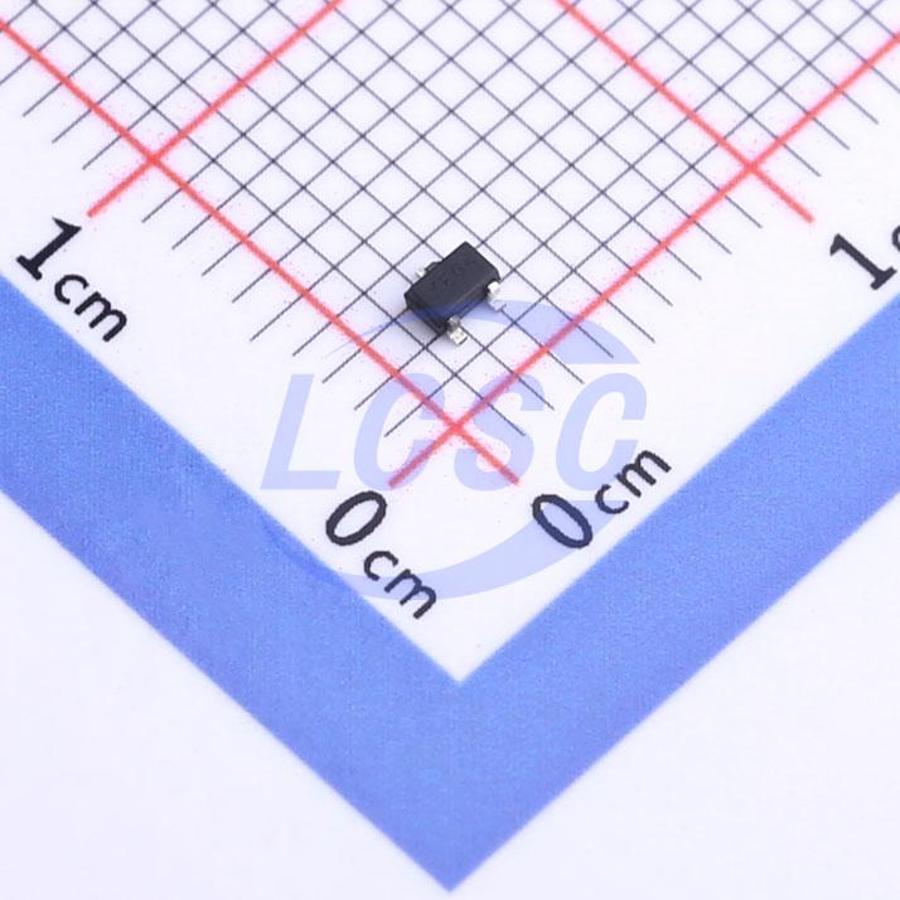

ESD1P0RFW H6327
7VC Clamp 10A@8/20us Ipp ESD DIODE SOT-323
SOT-323ROHS CompliantActive
ESD DIODE 70VWM 7VC SOT-323
- Manufacturer
- Infineon
- Manufacturer part #
- ESD1P0RFW H6327
- Store part #
- C535169
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C535169
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.72 | ₹44.72 |
| 10+ | ₹44.07 | ₹440.70 |
| 30+ | ₹43.63 | ₹1,308.90 |
| 100+ | ₹43.00 | ₹4,300.00 |
1 × ₹44.72
₹44.72
excl. GST
₹52.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD1P0RFW H6327
₹44.72 for 1 + GST
Specifications
- Clamping Voltage
- 7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
ESD / transient protection of RF antenna / interfaces or ultra high speed data lines acc. to: IEC61000-4-2 (ESD): ± 20 kV (contact) IEC61000-4-4 (EFT): 40 A (5/50 ns) IEC61000-4-5 (surge): 10 A (8/20 μs)
Applications
- For low RF signal levels without superimposed DC voltage: e.g. GPS, WLAN, Bluetooth
- For high RF signal levels or low RF signal levels with superimposed DC voltage: e.g. HDMI, S-ATA, Gbit Ethernet
Key features
- ESD / transient protection of RF antenna / interfaces or ultra high speed data lines acc. to: IEC61000-4-2 (ESD): ± 20 kV (contact) IEC61000-4-4 (EFT): 40 A (5/50 ns) IEC61000-4-5 (surge): 10 A (8/20 μs)
- Ultra low capacitance of 1 pF typ. (0.5 pF per diode)
- Low clamping voltage
- Pb-free (ROHS compliant) package
