InfineonDatasheet (PDF)
ESD234-B1-W0201 E6327
12.5VC Clamp 7A@8/20us Ipp TVS DIODE WLL-2-1
WLL-2-1ROHS3 CompliantActive
TVS DIODE 5.5VWM 12.5VC WLL-2-1
- Manufacturer
- Infineon
- Manufacturer part #
- ESD234-B1-W0201 E6327
- Store part #
- C535185
- Package / case
- WLL-2-1
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C535185
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.22 | ₹94.22 |
| 10+ | ₹76.46 | ₹764.60 |
| 30+ | ₹67.47 | ₹2,024.10 |
| 100+ | ₹58.69 | ₹5,869.00 |
| 500+ | ₹50.91 | ₹25,455.00 |
| 1,000+ | ₹48.10 | ₹48,100.00 |
1 × ₹94.22
₹94.22
excl. GST
₹111.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel

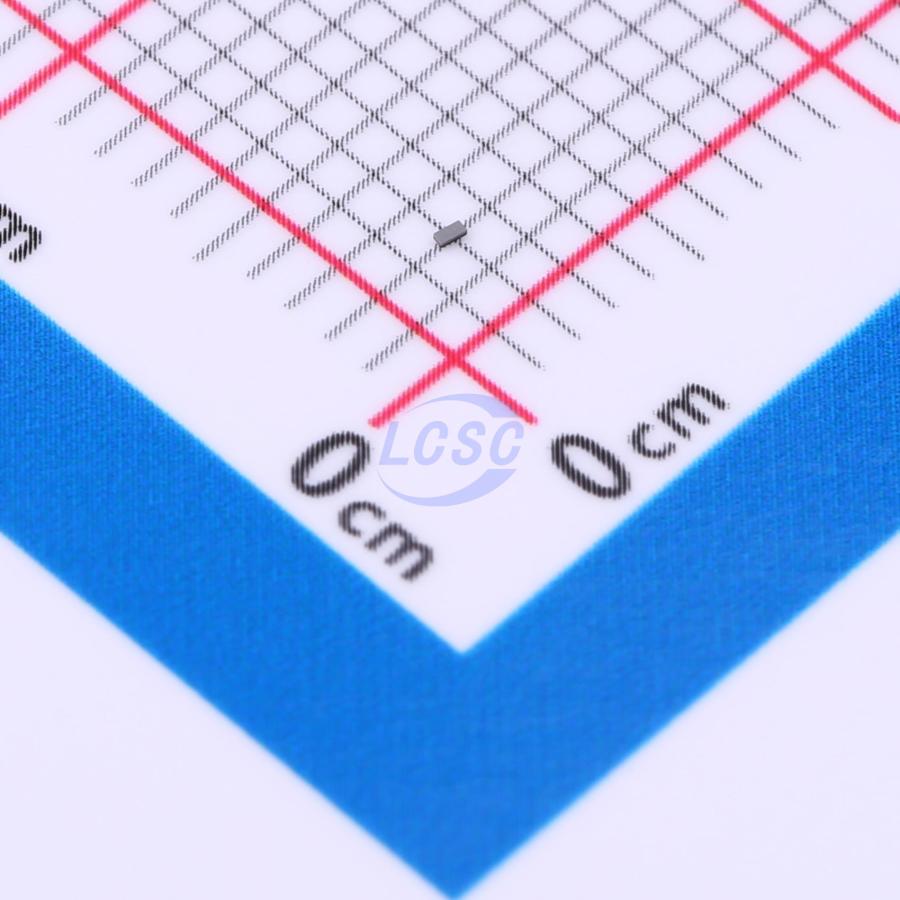

ESD234-B1-W0201 E6327
₹94.22 for 1 + GST
Specifications
- Clamping Voltage
- 12.5V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 84W@8/20us
- Voltage - Breakdown
- 8.6V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.005 g
Overview
TVS (transient voltage suppressor) Bi-directional, 5.5 V, 56 pF, 0201, RoHS and halogen free compliant
Applications
- ESD protection of highly susceptible IC/ASICs in audio, headset, human digital interfaces
Key features
- ESD/transient protection according to: IEC61000-4-2 (ESD): ±19 kV (air/contact discharge) IEC61000-4-4 (EFT): ±2 kV/±40 A (5/50 ns) IEC61000-4-5 (Surge): ±7 A (8/20 μs)
- Bi-directional working voltage up to: VRWM = ±5.5 V
- Line capacitance: C1 = 56 pF (typical) at f = 1 MHz
- Clamping voltage: VCL = 12.5 V (typical) at ITLP = 16 A with RDYN = 0.15 Ω (typical)
- Very low reverse current: IR < 1 nA (typical)
- Small form factor SMD size 0201, low profile (0.58 mm × 0.28 mm × 0.15 mm)
- Bi-directional, symmetric 1/ν characteristic for optimized design/assembly
