TECH PUBLICDatasheet (PDF)

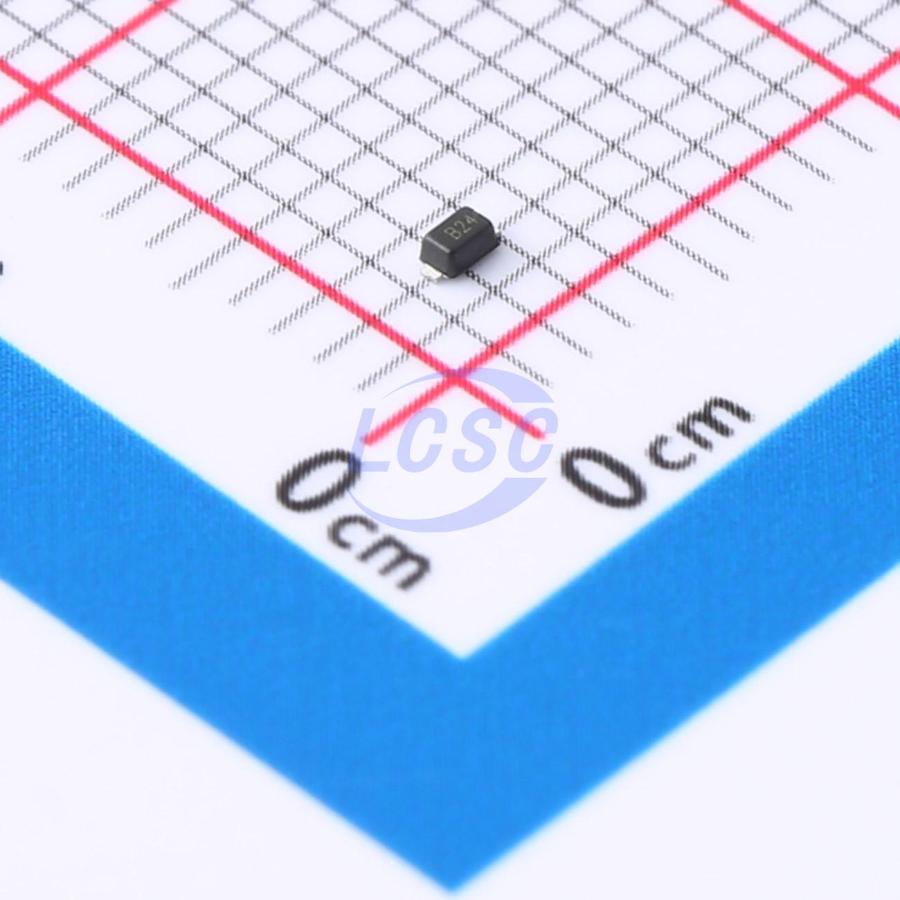

ESD24VB10-523
40VC Clamp 4A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 24VWM 40VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD24VB10-523
- Store part #
- C7202972
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C7202972
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.36 | ₹53.60 |
| 100+ | ₹4.22 | ₹422.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 3,000+ | ₹3.20 | ₹9,600.00 |
| 6,000+ | ₹2.86 | ₹17,160.00 |
| 9,000+ | ₹2.69 | ₹24,210.00 |
10 × ₹5.36
₹53.60
excl. GST
₹63.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD24VB10-523
₹53.60 for 10 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 26V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Low operating voltage: ±24V
- Ultra low capacitance: 10pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 4A (8/20μs)
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
