TIDatasheet (PDF)

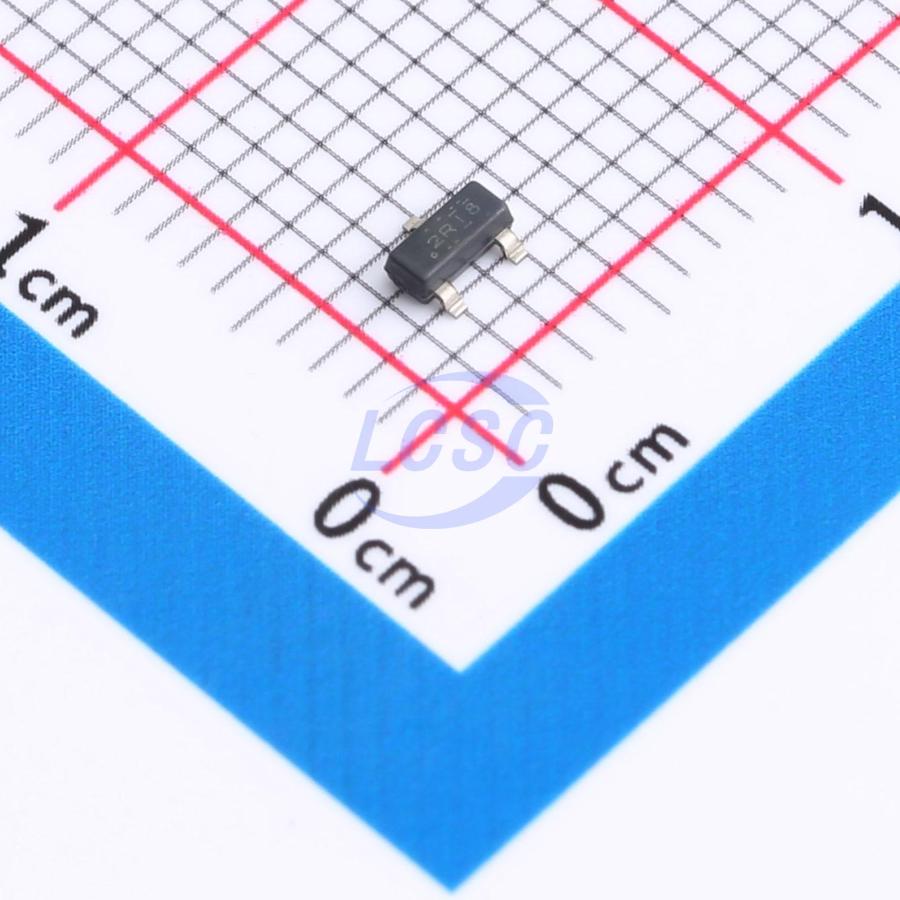

ESD2CANXL24DBZRQ1
36VC Clamp 2.5A@8/20us Ipp ESD DIODE SOT-23
SOT-23ROHS3 CompliantActive
Automotive 24-V, 2-Channel ESD Protection Diode for In-Vehicle Networks
- Manufacturer
- TI
- Manufacturer part #
- ESD2CANXL24DBZRQ1
- Store part #
- C20345393
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
870 in stock
#C20345393
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.01 | ₹190.05 |
| 50+ | ₹31.92 | ₹1,596.00 |
| 150+ | ₹28.96 | ₹4,344.00 |
| 500+ | ₹26.31 | ₹13,155.00 |
| 3,000+ | ₹25.59 | ₹76,770.00 |
| 6,000+ | ₹25.15 | ₹1,50,900.00 |
5 × ₹38.01
₹190.05
excl. GST
₹224.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD2CANXL24DBZRQ1
₹190.05 for 5 + GST
Specifications
- Clamping Voltage
- 36V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 35.5V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
