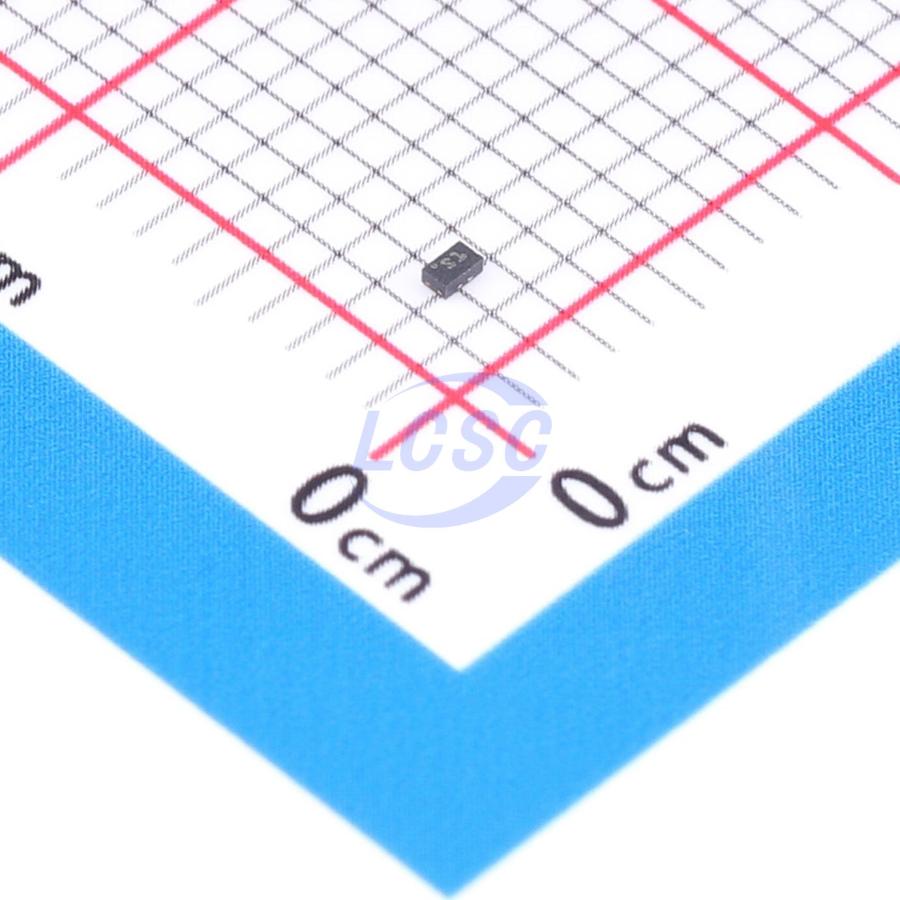

ESD441DPYR

ESD441 is a unidirectional ESD protection diode designed to protect data lines and other I/O ports. Compliant with the IEC 61000-4-2 international standard, it is rated to dissipate ESD strikes up to ±30kV, exceeding Level 4. The device features a typical I/O capacitance of 1pF, enabling protection for high-speed interfaces such as USB 2.0. For system-level protection against transient events, the device is specified with an ultra-low dynamic resistance of 0.1Ω and a clamping voltage of 7.6V at 16A TLP. The 30kV ESD rating and 6A surge capability deliver reliable transient protection in an ultra-compact package, safeguarding 5.5V power rails in space-constrained applications such as portable electronics and wearables. ESD441 is available in industry-standard 0201 and 0402 packages.

Applications

• Vacuum robots
• Wearable devices
• Smart speakers
• Portable electronics
• Small home appliances
• Retail automation and payment
• Laptops and desktops
• TVs and monitors
• Docking stations
• USB 2.0
• HDMI 1.4 and 2.0
• DisplayPort
• SIM card
• GPIO

Key features

• IEC 61000-4-2 Level 4 ESD protection
• Contact discharge ±30kV
• Air gap discharge ±30kV
• IEC 61000-4-5 surge protection, surge current 6A (8/20μs)
• Typical I/O capacitance 1pF
• Typical DC breakdown voltage 7V
• Maximum leakage current 50nA
• Ultra-low ESD clamping voltage, 7.6V at 16A TLP
• RDYN: 0.1Ω (I/O to GND)
• Low insertion loss, -3dB bandwidth up to 2GHz
• High-speed interface support up to 4Gbps
• Industrial temperature range: -55℃ to +150℃
• Space-saving industry-standard 0201 footprint (0.6mm × 0.3mm) and 0402 footprint (1.0mm × 0.6mm)
