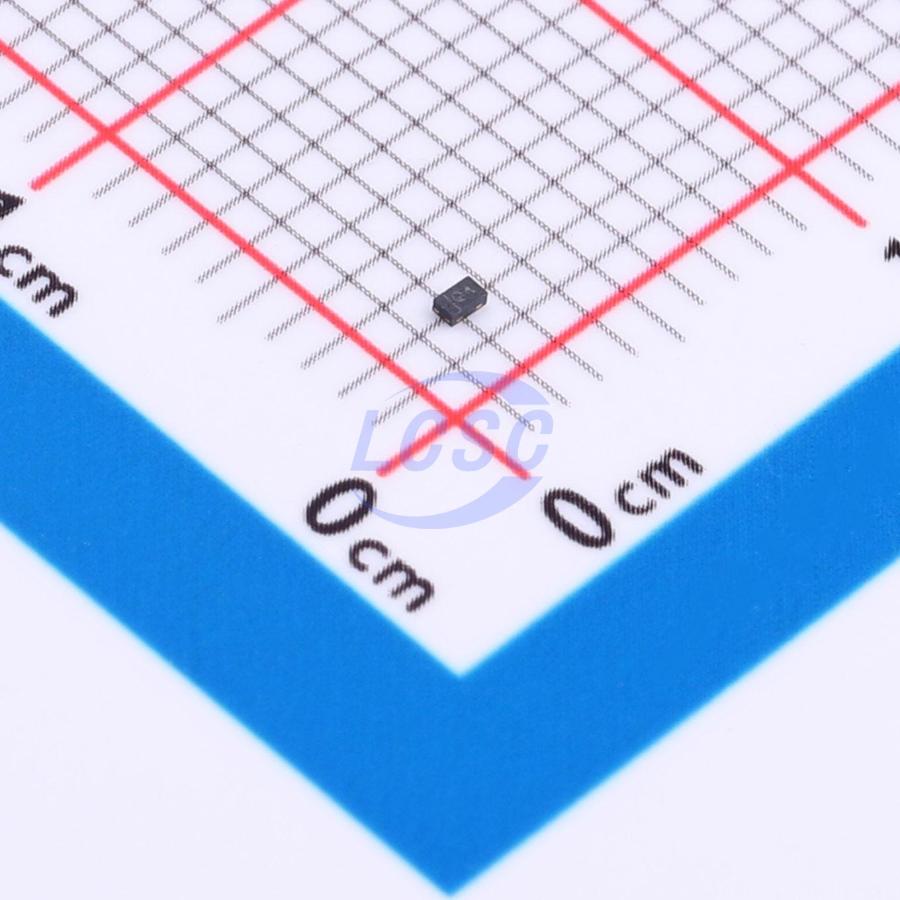

ESD501DPYRQ1

23V 3A@8/20us 15V 12V X1SON-2(0.6x1) TVS Diodes RoHS

X1SON-2(0.6x1)ROHS3 CompliantActive

ESD DIODE 12VWM 23VC X1SON-2(0.6x1)

Manufacturer: TI
Manufacturer part #: ESD501DPYRQ1
Store part #: C43177583
Package / case: X1SON-2(0.6x1)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

29 in stock

#C43177583

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹60.20	₹60.20
10+	₹47.38	₹473.80
30+	₹41.73	₹1,251.90
100+	₹34.99	₹3,499.00
500+	₹31.95	₹15,975.00
1,000+	₹29.99	₹29,990.00

Quantity (min 1)

1 × ₹60.20

₹60.20

excl. GST

₹71.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

ESD501DPYRQ1

₹60.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 23V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 3A@8/20us
Voltage - Breakdown: 15V
type: ESD
Reverse Leakage Current (Ir): 1nA
Reverse Stand-Off Voltage (Vrwm): 12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.011 g
