TECH PUBLICDatasheet (PDF)

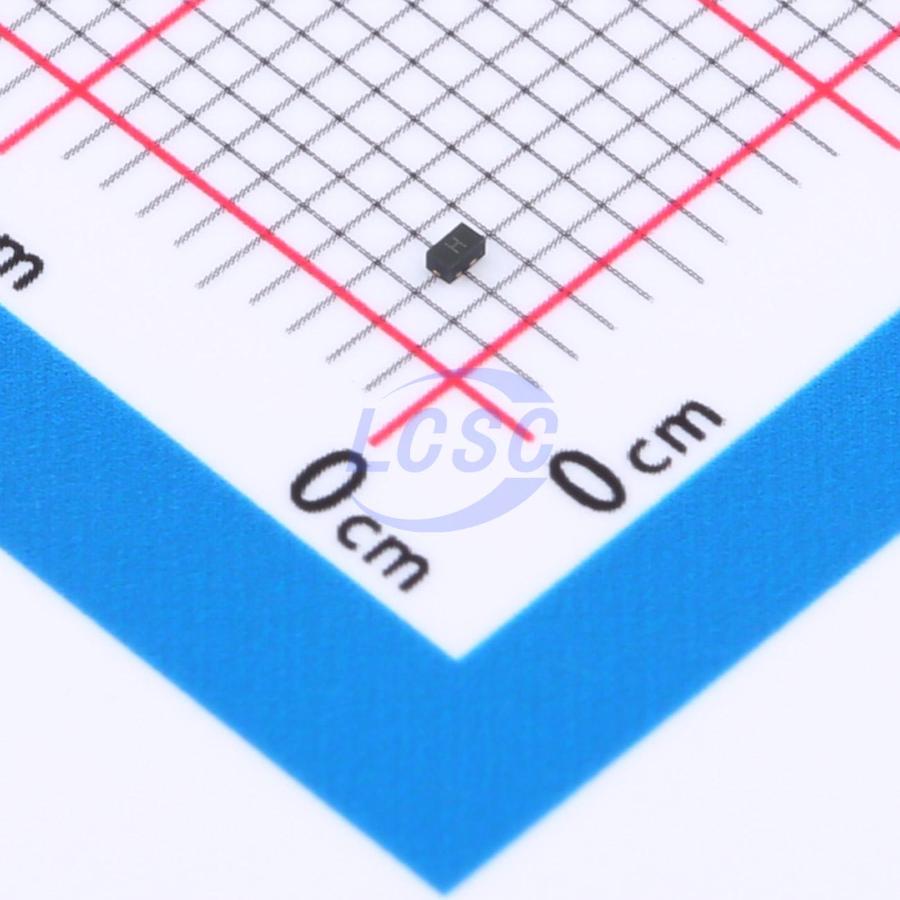

ESD5611N
12VC Clamp 20A@8/20us Ipp TVS DIODE DFN1006-2
DFN1006-2RoHSDiscontinued
TVS DIODE 5VWM 12VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD5611N
- Store part #
- C19829648
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C19829648
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.01 | ₹70.10 |
| 100+ | ₹5.54 | ₹554.00 |
| 300+ | ₹4.82 | ₹1,446.00 |
| 1,000+ | ₹4.27 | ₹4,270.00 |
| 5,000+ | ₹3.82 | ₹19,100.00 |
| 12,000+ | ₹3.61 | ₹43,320.00 |
10 × ₹7.01
₹70.10
excl. GST
₹82.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
ESD5611N
₹70.10 for 10 + GST
Specifications
- Clamping Voltage
- 12V
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 220W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 9V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.014 g
