TECH PUBLICDatasheet (PDF)

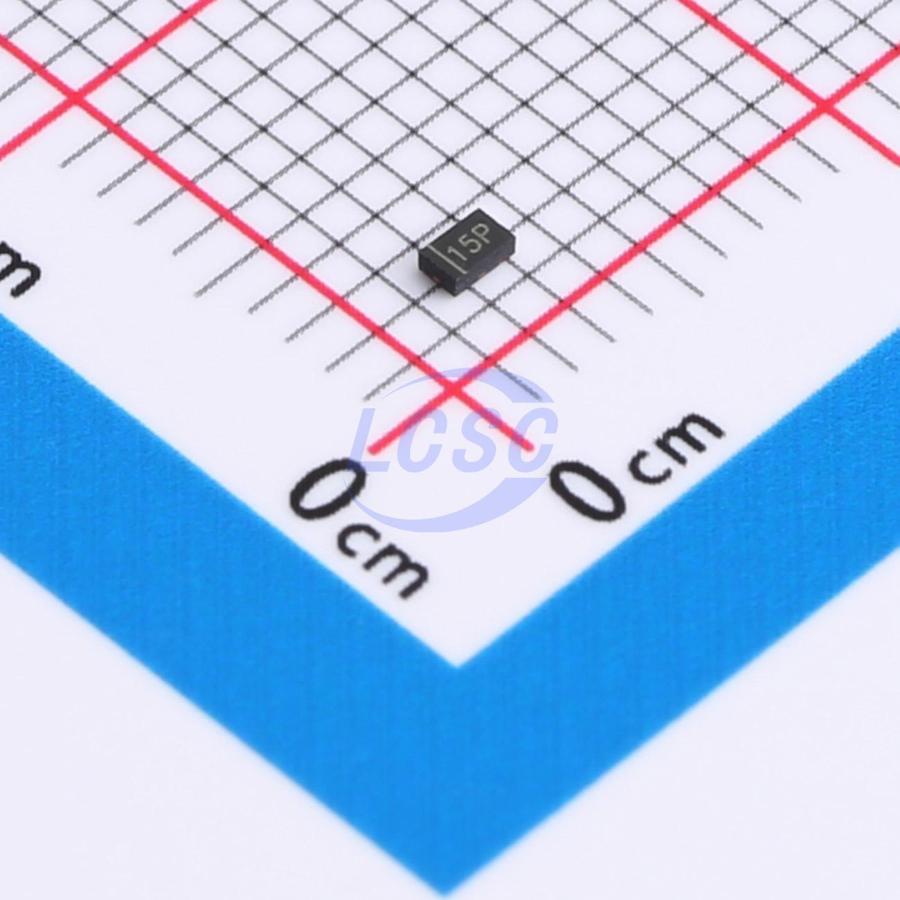

ESD56201D15
30VC Clamp 60A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
15VWM 30VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD56201D15
- Store part #
- C19829464
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,830 in stock
#C19829464
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.87 | ₹68.70 |
| 100+ | ₹5.42 | ₹542.00 |
| 300+ | ₹4.71 | ₹1,413.00 |
| 3,000+ | ₹4.17 | ₹12,510.00 |
| 6,000+ | ₹3.74 | ₹22,440.00 |
| 9,000+ | ₹3.52 | ₹31,680.00 |
10 × ₹6.87
₹68.70
excl. GST
₹81.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD56201D15
₹68.70 for 10 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 60A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.8kW@8/20us
- Voltage - Breakdown
- 16.5V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Many other portable devices
Key features
- 1800W peak pulse power (8/20μs)
- Low leakage: nA level
- Low operating voltage: 15V
- Ultra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 60A (8/20 μs)
- RoHS Compliant
