TECH PUBLICDatasheet (PDF)

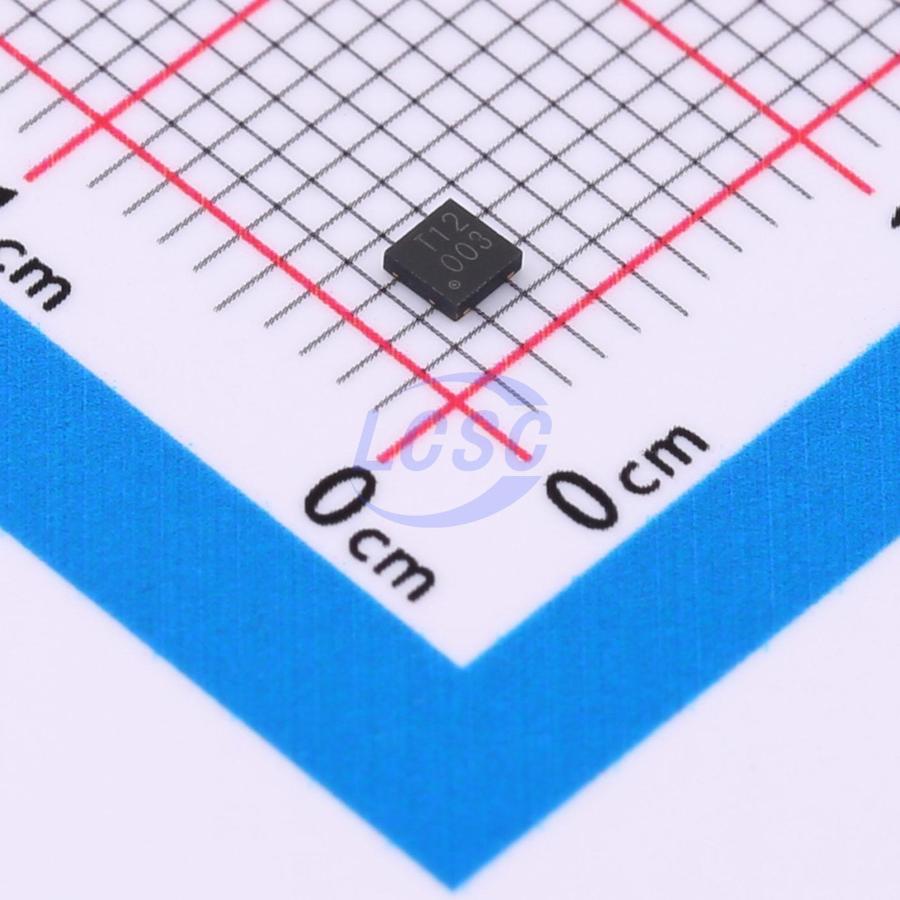

ESD5641D12-3
30VC Clamp 200A Ipp DFN2x2-3
DFN2x2-3RoHSActive
12VWM 30VC DFN2x2-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD5641D12-3
- Store part #
- C42370487
- Package / case
- DFN2x2-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,810 in stock
#C42370487
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.68 | ₹106.80 |
| 100+ | ₹8.59 | ₹859.00 |
| 300+ | ₹7.54 | ₹2,262.00 |
| 1,000+ | ₹6.76 | ₹6,760.00 |
| 5,000+ | ₹6.14 | ₹30,700.00 |
| 10,000+ | ₹5.82 | ₹58,200.00 |
10 × ₹10.68
₹106.80
excl. GST
₹126.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5641D12-3
₹106.80 for 10 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 200A
- Peak Pulse Power Dissipation (Ppp)
- 6kW
- Voltage - Breakdown
- 13V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Peripherals
Key features
- Low operating voltage: 12V
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 200A (8/20ns)
- 3-pin leadless package
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
