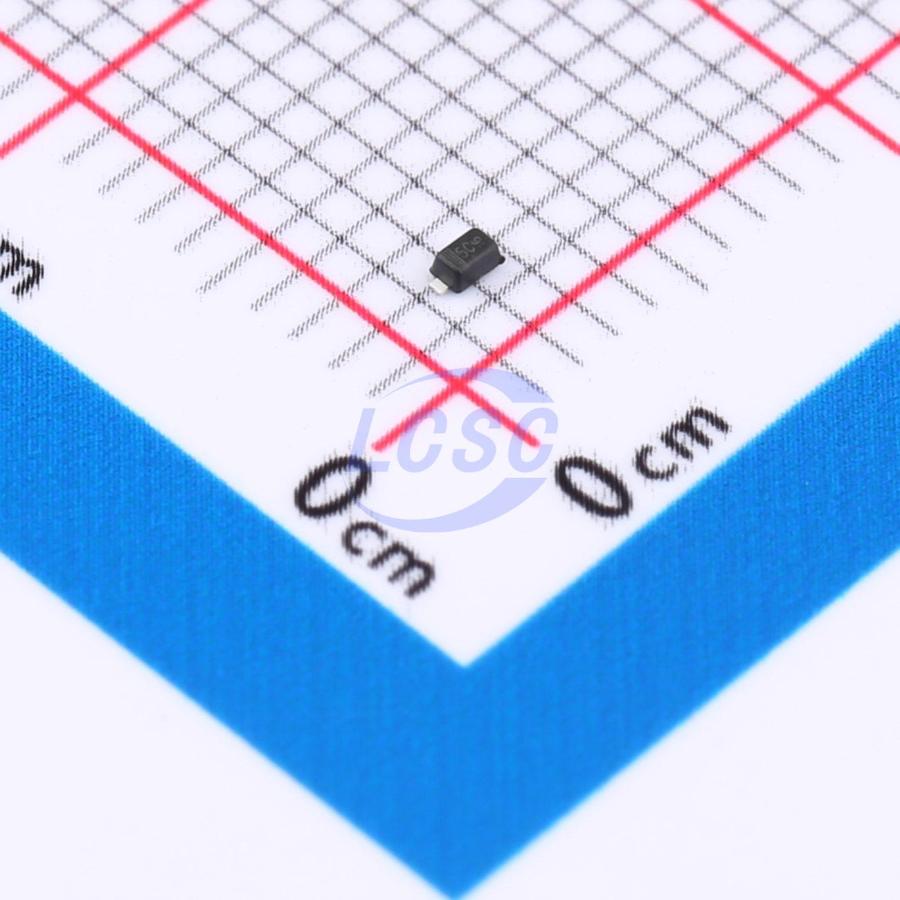

ESD5B5.0S
11.6VC Clamp 9A Ipp ESD DIODE SOD-523
ESD DIODE 5VWM 11.6VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- ESD5B5.0S
- Store part #
- C6285726
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6285726
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.92 | ₹96.00 |
| 500+ | ₹1.53 | ₹765.00 |
| 3,000+ | ₹1.24 | ₹3,720.00 |
| 6,000+ | ₹1.11 | ₹6,660.00 |
| 24,000+ | ₹0.9923 | ₹23,815.20 |
| 51,000+ | ₹0.9393 | ₹47,904.30 |
50 × ₹1.92
₹96.00
excl. GST
₹113.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5B5.0S
₹96.00 for 50 + GST
Specifications
- Clamping Voltage
- 11.6V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 9A
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.025 g
Overview
The ESD5B5.0S protects sensitive semiconductor components from damage or failure caused by ESD and other transient voltage events. Its excellent clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for ESD-exposed designs. It offers designers the flexibility to protect a single bidirectional line in applications where an array is not suitable. Available in SOD-523 package.
Key features
- High-speed data line transient protection: IEC 61000-4-2 (ESD) ±30kV (contact), ±30kV (air); IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 48W (8/20μs)
- Operating voltage: 5V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
