TECH PUBLICDatasheet (PDF)

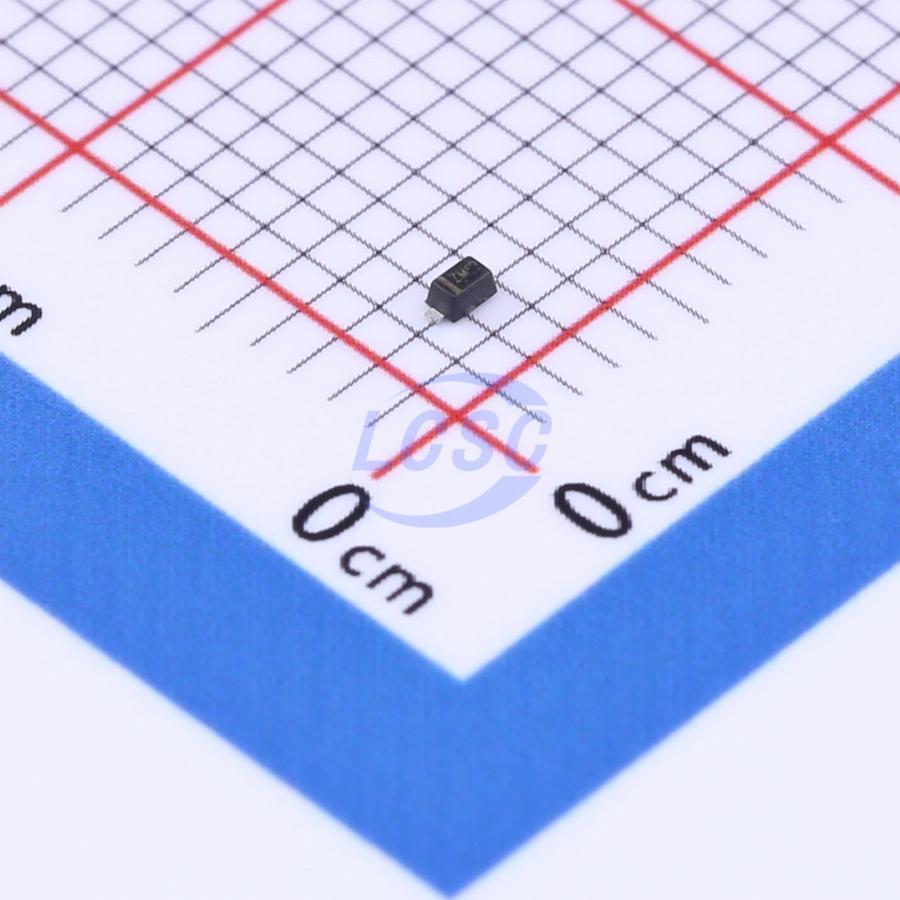

ESD5Z12V
nan
SOD-523RoHSActive
12VWM 30VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD5Z12V
- Store part #
- C2841435
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C2841435
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.08 | ₹61.60 |
| 200+ | ₹2.43 | ₹486.00 |
| 600+ | ₹2.08 | ₹1,248.00 |
| 3,000+ | ₹1.67 | ₹5,010.00 |
| 9,000+ | ₹1.48 | ₹13,320.00 |
| 21,000+ | ₹1.39 | ₹29,190.00 |
20 × ₹3.08
₹61.60
excl. GST
₹72.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5Z12V
₹61.60 for 20 + GST
Specifications
- Clamping Voltage
- 30V
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 14.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.026 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays, USB2.0
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines td
- IEC 61000 - 4 - 2 (ESD) ± 30kV (air), ± 30kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
- Protects OnePower or l/OPort
- Low leakage current
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
