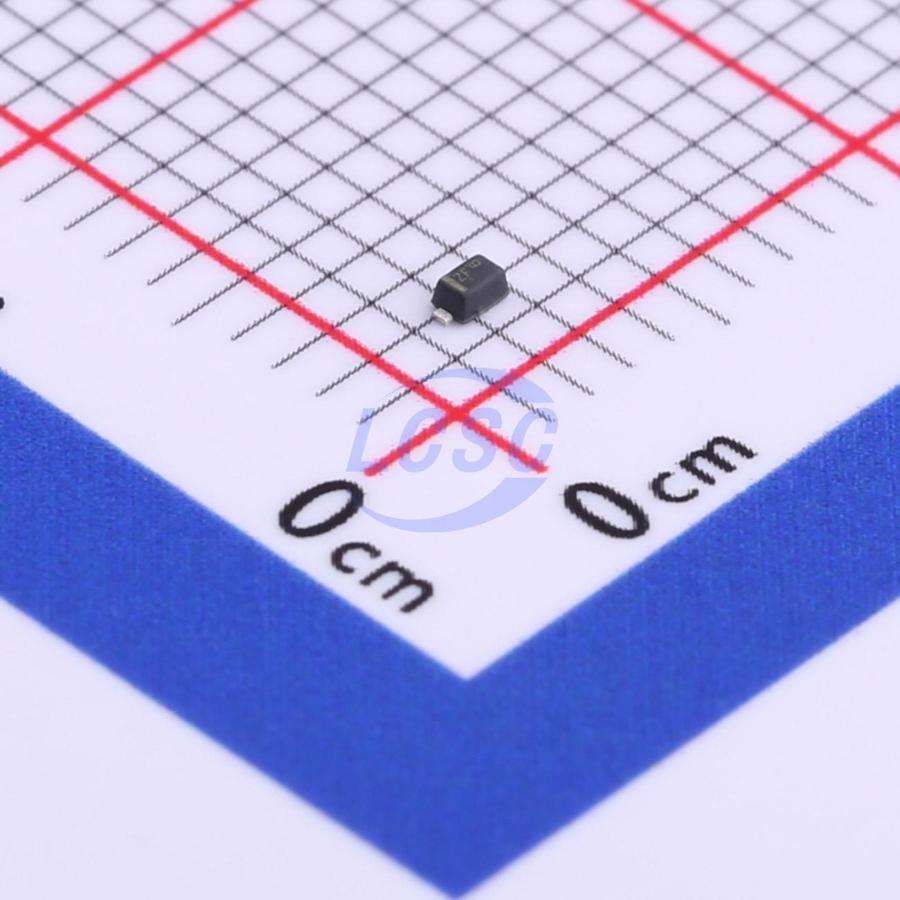

ESD5Z5.0T1G
18.6VC Clamp 9.4A@8/20us Ipp ESD DIODE SOD-523
ESD DIODE 5VWM 18.6VC SOD-523
- Manufacturer
- onsemi
- Manufacturer part #
- ESD5Z5.0T1G
- Store part #
- C82044
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,79,680 in stock
#C82044
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.91 | ₹98.20 |
| 200+ | ₹3.84 | ₹768.00 |
| 600+ | ₹3.24 | ₹1,944.00 |
| 3,000+ | ₹2.70 | ₹8,100.00 |
| 9,000+ | ₹2.39 | ₹21,510.00 |
| 21,000+ | ₹2.22 | ₹46,620.00 |
20 × ₹4.91
₹98.20
excl. GST
₹115.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5Z5.0T1G
₹98.20 for 20 + GST
Specifications
- Clamping Voltage
- 18.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 9.4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 174W
- Number of Channels
- 1
- Voltage - Breakdown
- 6.2V
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.024 g
Overview
The ESD5Z Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Applications
- cellular phones
- portable devices
- digital cameras
- power supplies
- many other portable applications
Key features
- Low Clamping Voltage
- Small Body Outline Dimensions: 0.047" x 0.032" (1.20 mm x 0.80 mm)
- Low Body Height: 0.028" (0.7 mm)
- Stand−off Voltage: 2.5 V - 12 V
- Peak Power up to 240 Watts @ 8 x 20 μs Pulse
- Low Leakage
- Response Time is Typically <1 ns
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- IEC61000−4−2 Level 4 ESD Protection
- IEC61000−4−4 Level 4 EFT Protection
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
