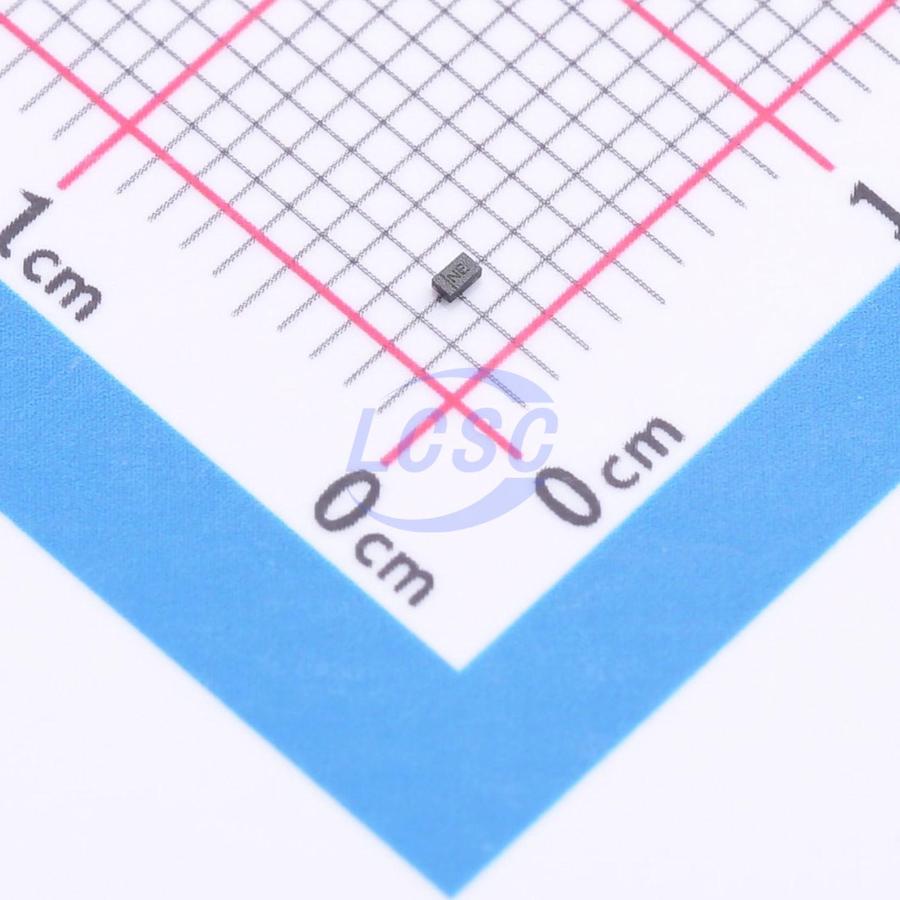

ESD761DPYR

36.3VC Clamp 1.8A@8/20us Ipp ESD DIODE X1-SON-2(0.6x1)

X1-SON-2(0.6x1)ROHS3 CompliantActive

24-V 1-Channel ESD Protection Diodes

Manufacturer: TI
Manufacturer part #: ESD761DPYR
Store part #: C20345399
Package / case: X1-SON-2(0.6x1)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,465 in stock

#C20345399

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹15.04	₹75.20
50+	₹12.25	₹612.50
150+	₹10.82	₹1,623.00
500+	₹9.63	₹4,815.00
2,500+	₹9.22	₹23,050.00
5,000+	₹8.94	₹44,700.00

Quantity (min 5, multiples of 5)

5 × ₹15.04

₹75.20

excl. GST

₹88.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

ESD761DPYR

₹75.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 36.3V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 1.8A@8/20us
Peak Pulse Power Dissipation (Ppp): 65W@8/20us
Number of Channels: 1
Voltage - Breakdown: 35.5V
type: ESD
Reverse Leakage Current (Ir): 50nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.011 g

Overview

The ESD751 and ESD761 are single-channel low capacitance bidirectional ESD protection devices for USB power delivery (USB-PD). These devices are rated to dissipate contact ESD strikes beyond the maximum level specified in the IEC 61000-4-2 international standard (±22-kV Contact, ±22-kV Airgap) and (±15-kV Contact, ±15-kV Airgap), respectively. The low dynamic resistance and low clamping voltage help protect systems against transient events. This protection is key because industrial systems require a high level of robustness and reliability.

Applications

USB power delivery (USB-PD)
VBUS protection I/O protection
DeviceNet
Smart distribution systems
4/20 mA circuits
PLC surge protection
ADC surge protection

Key features

IEC 61000-4-2 level 4 ESD protection:
±22-kV or ±15-kV contact discharge
±22-kV or ±15-kV air-gap discharge
Robust surge protection:
IEC 61000-4-5 (8/20 μs): 2.8 A or 1.8 A
24-V working voltage
Bidirectional ESD protection
Low clamping voltage protects downstream components
Temperature range: -55°C to +150°C
I/O capacitance = 1.6 pF or 1.1 pF (typical)
Offered in a standard leaded package and 0402 footprint package: SOD-523 (DYA) and X1SON (DPY)
Leaded packages used for automatic optical inspection (AOI)
