TECH PUBLIC

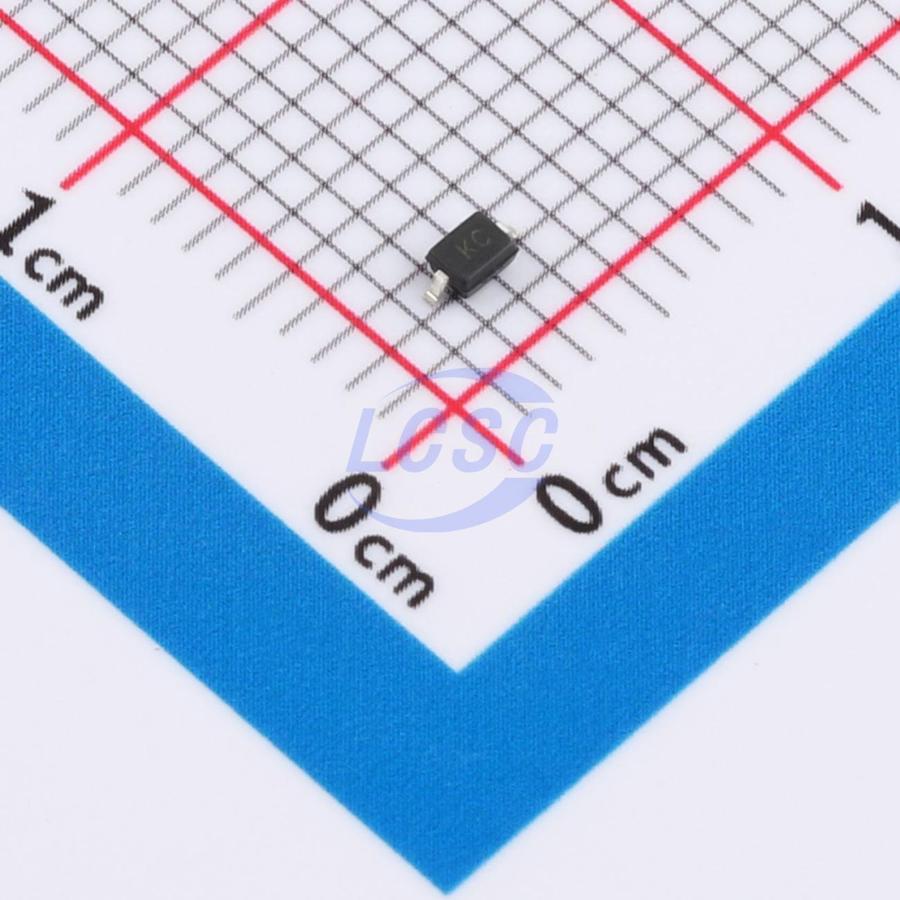

ESD851DYFR-TP

75V 4A@8/20us 250W@8/20us 40V Bidirectional 36V SOD-323 TVS Diodes

SOD-323RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: ESD851DYFR-TP
Store part #: C52098200
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,130 in stock

#C52098200

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
10+	₹9.57	₹95.70
100+	₹7.51	₹751.00
300+	₹6.50	₹1,950.00
3,000+	₹5.73	₹17,190.00
6,000+	₹5.12	₹30,720.00
9,000+	₹4.82	₹43,380.00

Quantity (min 10, multiples of 10)

10 × ₹9.57

₹95.70

excl. GST

₹112.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESD851DYFR-TP

₹95.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 75V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 250W@8/20us
Voltage - Breakdown: 40V
Number of Channels: 2
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.026 g

Overview

Applications

Mobile phones & accessories
Personal digital assistants
Laptops & handheld devices
Portable instruments
Peripherals

Key features

250W peak pulse power (8/20μs)
Low working voltage: 36V
Ultra-low capacitance: typical 1.0pF
Ultra-low leakage current: nanoamp level
Low clamping voltage
Protects one power or data line
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±20kV
Contact discharge: ±20kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
RoHS compliant
