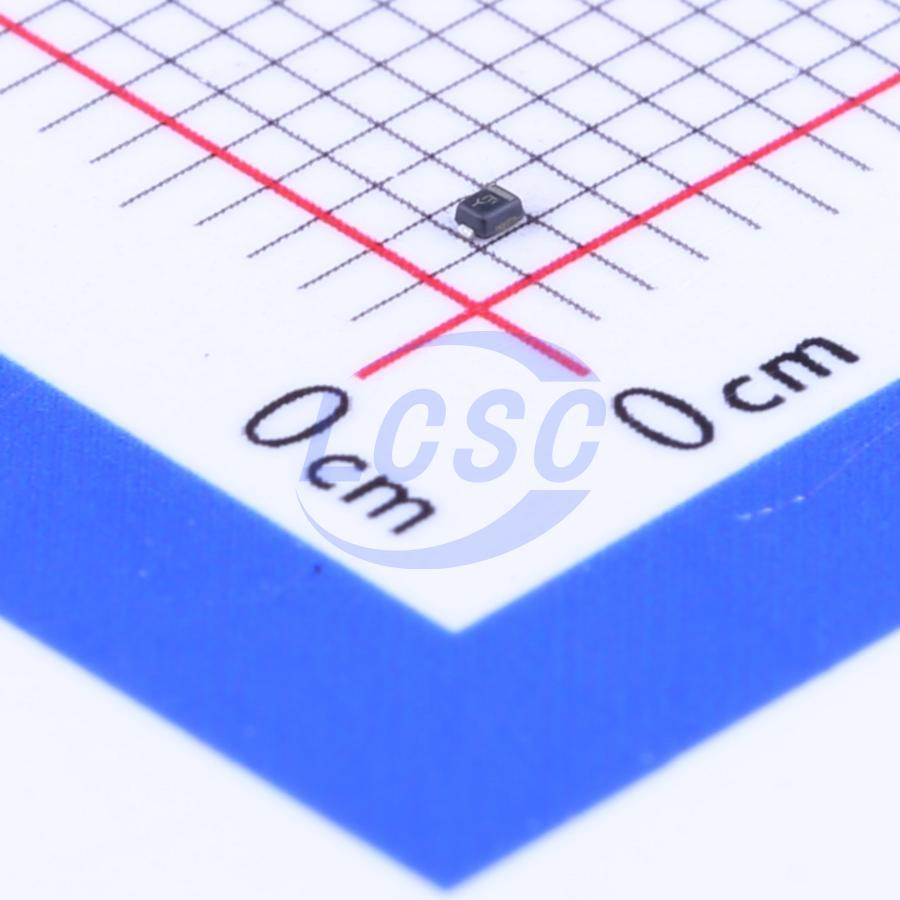

ESD9B5.0ST5G
15VC Clamp TVS DIODE SOD-923
TVS DIODE 5VWM 15VC SOD-923
- Manufacturer
- onsemi
- Manufacturer part #
- ESD9B5.0ST5G
- Store part #
- C111566
- Package / case
- SOD-923
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,17,120 in stock
#C111566
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.06 | ₹101.20 |
| 200+ | ₹4.05 | ₹810.00 |
| 600+ | ₹3.49 | ₹2,094.00 |
| 2,000+ | ₹3.15 | ₹6,300.00 |
| 8,000+ | ₹2.24 | ₹17,920.00 |
| 16,000+ | ₹2.08 | ₹33,280.00 |
20 × ₹5.06
₹101.20
excl. GST
₹119.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
ESD9B5.0ST5G
₹101.20 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+150℃
- Number of Channels
- 1
- Voltage - Breakdown
- 7.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.011 g
Overview
The ESD9B Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space comes at a premium.
Applications
- cellular phones
- MP3 players
- digital cameras
- portable applications
Key features
- Low Capacitance 15 pF
- Low Clamping Voltage
- Small Body Outline Dimensions: 0.039"×0.024" (1.0mm×0.60mm)
- Low Body Height: 0.016" (0.4 mm)
- Stand−off Voltage: 3.3 V, 5 V
- Low Leakage
- Response Time is <1 ns
- IEC61000−4−2 Level 4 ESD Protection
- AEC−Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- This is a Pb. −Free Device
