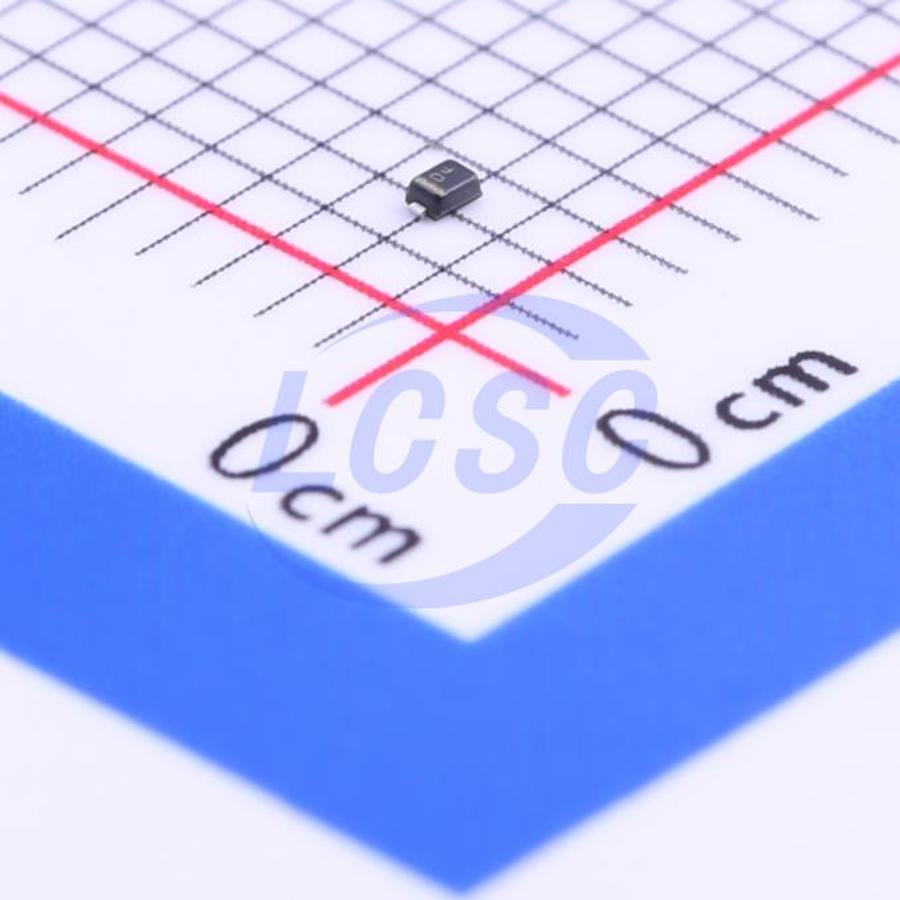

ESD9L5.0ST5G
9.8VC Clamp 1A Ipp ESD DIODE SOD-923
ESD DIODE 5VWM 9.8VC SOD-923
- Manufacturer
- onsemi
- Manufacturer part #
- ESD9L5.0ST5G
- Store part #
- C82326
- Package / case
- SOD-923
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
76,670 in stock
#C82326
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.37 | ₹73.70 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹4.90 | ₹1,470.00 |
| 1,000+ | ₹4.27 | ₹4,270.00 |
| 5,000+ | ₹3.19 | ₹15,950.00 |
| 8,000+ | ₹2.94 | ₹23,520.00 |
10 × ₹7.37
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
ESD9L5.0ST5G
₹73.70 for 10 + GST
Specifications
- Clamping Voltage
- 9.8V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1A
- Voltage - Breakdown
- 5.4V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
The ESD9L Series is designed to protect voltage sensitive components that require ultra−low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications.
Applications
- USB 2.0 high-speed applications
- Antenna line applications
Key features
- Ultra Low Capacitance 0.5 pF
- Low Clamping Voltage
- Small Body Outline Dimensions: 0.039"x0.024" (1.00 mm x 0.60 mm)
- Low Body Height: 0.016" (0.4 mm)
- Stand−off Voltage: 3.3 V, 5 V
- Low Leakage
- Response Time is Typically <1.0 ns
- IEC61000−4−2 Level 4 ESD Protection
- S and SZ Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
