TECH PUBLICDatasheet (PDF)

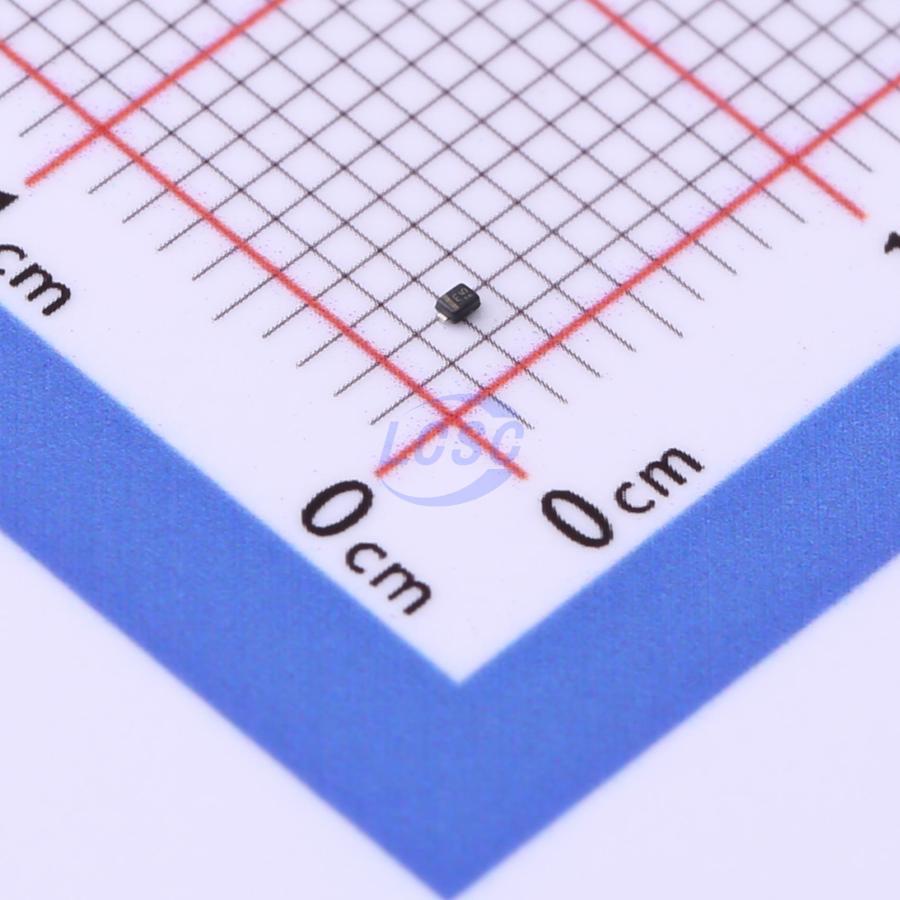

ESD9X3.3ST5G
10.4VC Clamp 9A@8/20us Ipp SOD-923(0402)
SOD-923(0402)RoHSActive
3.3VWM 10.4VC SOD-923(0402)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD9X3.3ST5G
- Store part #
- C3021105
- Package / case
- SOD-923(0402)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,820 in stock
#C3021105
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.87 | ₹97.40 |
| 200+ | ₹3.86 | ₹772.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 2,000+ | ₹2.98 | ₹5,960.00 |
| 8,000+ | ₹2.53 | ₹20,240.00 |
| 16,000+ | ₹2.37 | ₹37,920.00 |
20 × ₹4.87
₹97.40
excl. GST
₹114.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
ESD9X3.3ST5G
₹97.40 for 20 + GST
Specifications
- Clamping Voltage
- 10.4V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 9A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.01 g
Overview
Applications
- Smart Phone and Tablet PC
- TV and Set Top Box
- Wearable Devices
- PDA
Key features
- Ultra low capacitance: 90pF (Max)
- Ultra low leakage: nA level
- Low operating voltage: 3.3 V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000-4-5 (Lightning) 9A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
