STDatasheet (PDF)

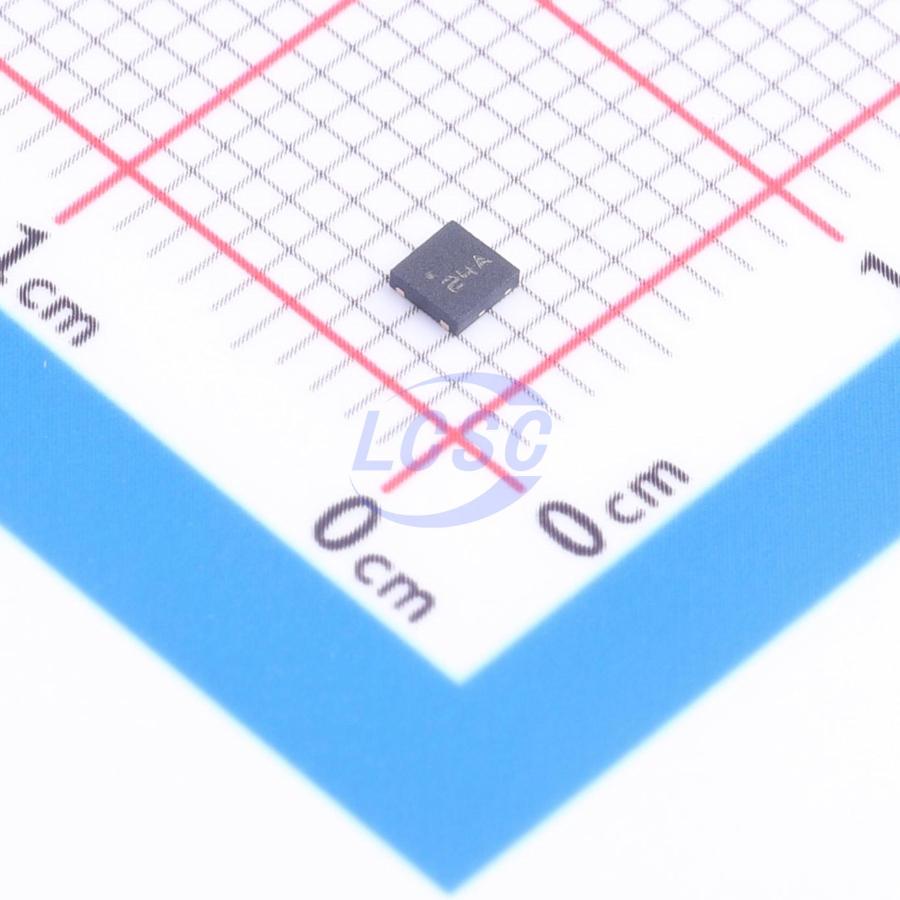

ESDA24P140-1U3M
38VC Clamp 140A@8/20us Ipp ESD DIODE QFN-3(2x2)
QFN-3(2x2)ROHS3 CompliantActive
ESD DIODE 22VWM 38VC QFN-3(2x2)
- Manufacturer
- ST
- Manufacturer part #
- ESDA24P140-1U3M
- Store part #
- C3702408
- Package / case
- QFN-3(2x2)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
284 in stock
#C3702408
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.44 | ₹81.44 |
| 10+ | ₹79.50 | ₹795.00 |
| 30+ | ₹78.20 | ₹2,346.00 |
| 100+ | ₹76.91 | ₹7,691.00 |
1 × ₹81.44
₹81.44
excl. GST
₹96.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ESDA24P140-1U3M
₹81.44 for 1 + GST
Specifications
- Clamping Voltage
- 22.7V
- Operating Temperature
- -55℃~+150℃@(Tj)
- Peak Pulse Current (Ipp)
- 10A
- Peak Pulse Power Dissipation (Ppp)
- 330W
- Number of Channels
- 2
- Voltage - Breakdown
- 22.7V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
