TECH PUBLICDatasheet (PDF)

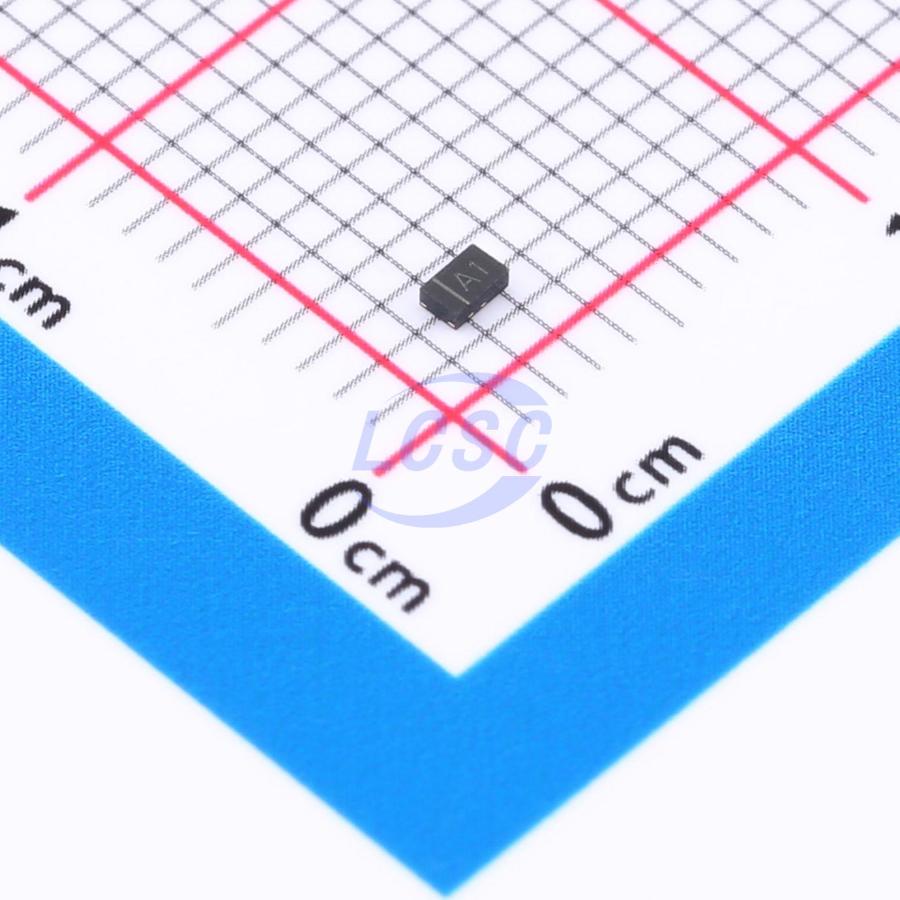

ESDA25P35-1U1M
38VC Clamp 75A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
24VWM 38VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDA25P35-1U1M
- Store part #
- C19829649
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C19829649
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.03 | ₹80.15 |
| 50+ | ₹12.90 | ₹645.00 |
| 150+ | ₹11.34 | ₹1,701.00 |
| 500+ | ₹10.16 | ₹5,080.00 |
| 3,000+ | ₹8.57 | ₹25,710.00 |
| 6,000+ | ₹8.11 | ₹48,660.00 |
5 × ₹16.03
₹80.15
excl. GST
₹94.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDA25P35-1U1M
₹80.15 for 5 + GST
Specifications
- Clamping Voltage
- 35V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 75A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 2.8kW@8/20us
- Voltage - Breakdown
- 26.5V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Many other portable devices
Key features
- 2800W peak pulse power (8/20s)
- Low leakage: nA level
- Low operating voltage: 24V
- Ultra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 75A (8/20μs)
- RoHS Compliant
