TECH PUBLICDatasheet (PDF)

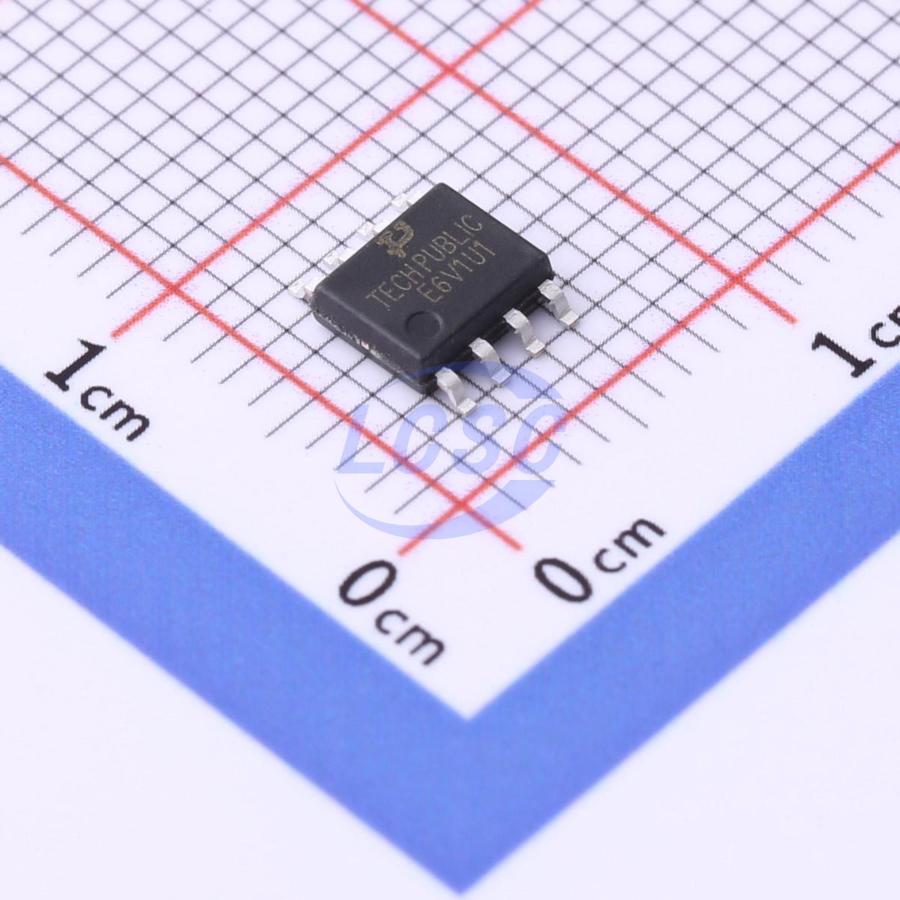

ESDA6V1U1RL
14VC Clamp 3A@8/20us Ipp SOP-8
SOP-8RoHSActive
5VWM 14VC SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDA6V1U1RL
- Store part #
- C4355040
- Package / case
- SOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,245 in stock
#C4355040
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.54 | ₹147.70 |
| 50+ | ₹23.52 | ₹1,176.00 |
| 150+ | ₹20.94 | ₹3,141.00 |
| 500+ | ₹17.73 | ₹8,865.00 |
| 2,500+ | ₹14.34 | ₹35,850.00 |
| 5,000+ | ₹13.48 | ₹67,400.00 |
5 × ₹29.54
₹147.70
excl. GST
₹174.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ESDA6V1U1RL
₹147.70 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 40W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- Four channels
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 20nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
Applications
- Computers and peripherals
- Communication systems
- Audio and video equipment
- High speed data lines
- Parallel ports
Key features
- Low capacitance: 3pF (max)
- Ultralow leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 6 lines protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- RoHS Compliant
