TECH PUBLICDatasheet (PDF)

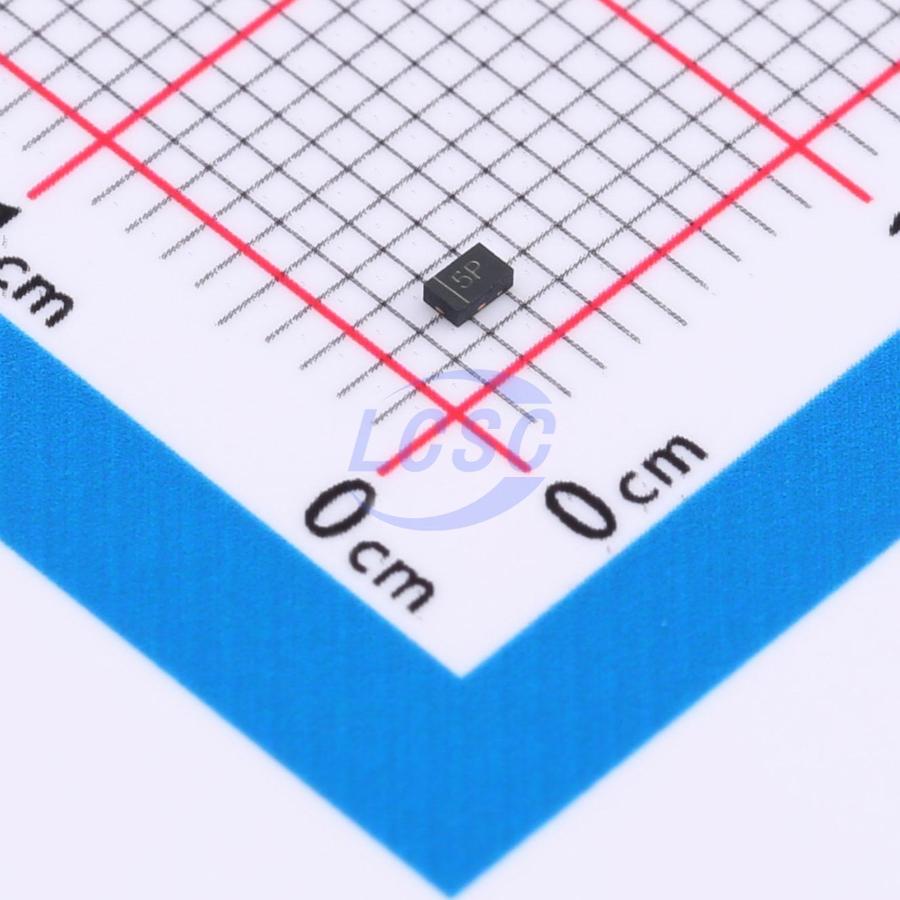

ESDA7P120-1U1M-TP
11VC Clamp 110A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
5VWM 11VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDA7P120-1U1M-TP
- Store part #
- C41348161
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C41348161
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.20 | ₹102.00 |
| 100+ | ₹8.12 | ₹812.00 |
| 300+ | ₹7.08 | ₹2,124.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
| 6,000+ | ₹5.66 | ₹33,960.00 |
| 9,000+ | ₹5.34 | ₹48,060.00 |
10 × ₹10.20
₹102.00
excl. GST
₹120.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDA7P120-1U1M-TP
₹102.00 for 10 + GST
Specifications
- Clamping Voltage
- 11V
- Peak Pulse Current (Ipp)
- 110A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.2kW@8/20us
- Voltage - Breakdown
- 7.6V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Many other portable devices
Key features
- 1200W peak pulse power (8/20 us)
- Low leakage: nA level
- Low operating voltage: 5V
- Ultra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 110A (8/20μs)
- RoHS Compliant
