TECH PUBLICDatasheet (PDF)

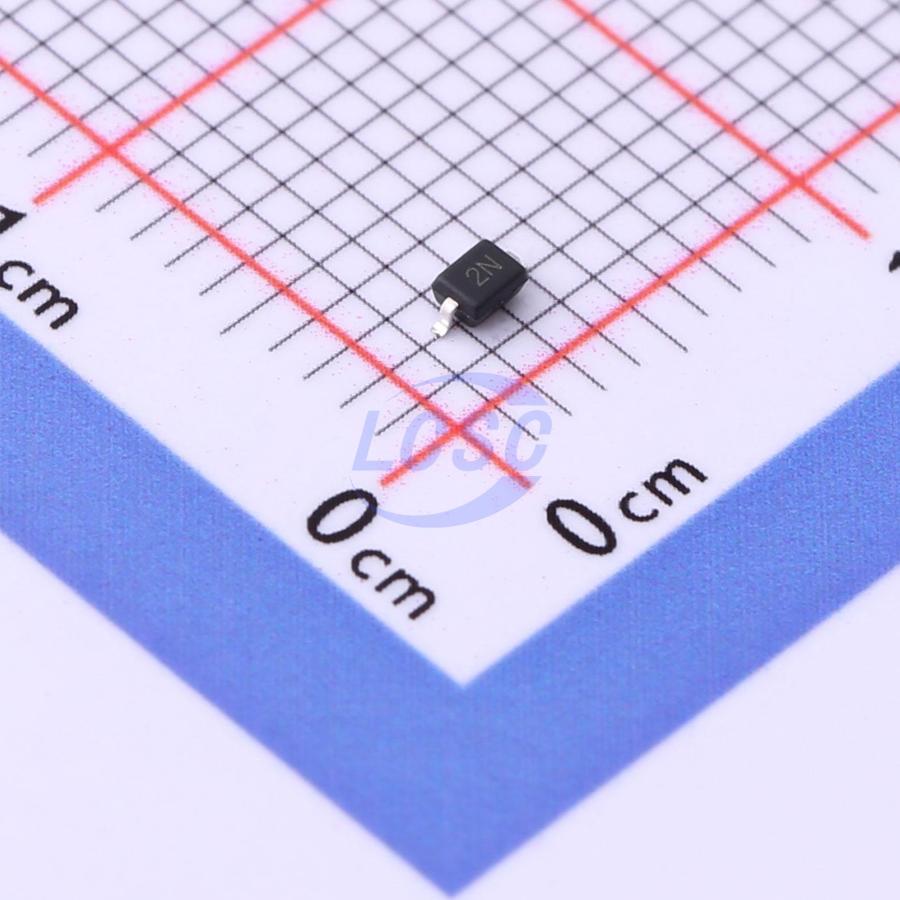

ESDBL36VD3
41VC 60VC Clamp 4A@8/20us Ipp TVS DIODE SOD-323
SOD-323RoHSActive
TVS DIODE 36VWM 41VC 60VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDBL36VD3
- Store part #
- C3040610
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,900 in stock
#C3040610
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.95 | ₹99.00 |
| 200+ | ₹3.90 | ₹780.00 |
| 600+ | ₹3.33 | ₹1,998.00 |
| 3,000+ | ₹2.92 | ₹8,760.00 |
| 9,000+ | ₹2.62 | ₹23,580.00 |
| 21,000+ | ₹2.46 | ₹51,660.00 |
20 × ₹4.95
₹99.00
excl. GST
₹116.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDBL36VD3
₹99.00 for 20 + GST
Specifications
- Clamping Voltage
- 41V;60V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Voltage - Breakdown
- 40V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.026 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
- Pagers Peripherals Desktop and Servers
Key features
- 250W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage: 36V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (Lightning) 4A (8/20ns)
