TECH PUBLICDatasheet (PDF)

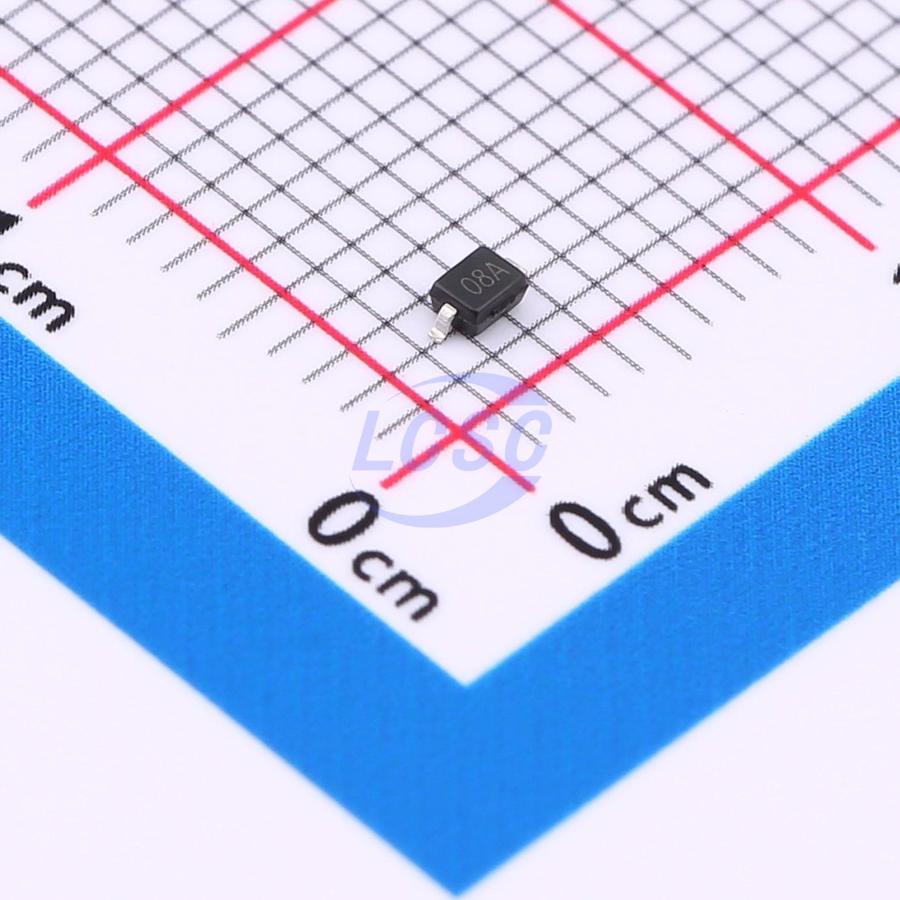

ESDBL7V0D3-TP
14VC Clamp 8A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 8VWM 14VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDBL7V0D3-TP
- Store part #
- C46472770
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,200 in stock
#C46472770
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.76 | ₹95.20 |
| 200+ | ₹3.73 | ₹746.00 |
| 600+ | ₹3.16 | ₹1,896.00 |
| 3,000+ | ₹2.82 | ₹8,460.00 |
| 9,000+ | ₹2.51 | ₹22,590.00 |
| 21,000+ | ₹2.35 | ₹49,350.00 |
20 × ₹4.76
₹95.20
excl. GST
₹112.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDBL7V0D3-TP
₹95.20 for 20 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 11V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- Low operating voltage: 7V
- Ultra low capacitance: 18pF(Max)
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- 2-pin leadless package
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
