TECH PUBLICDatasheet (PDF)

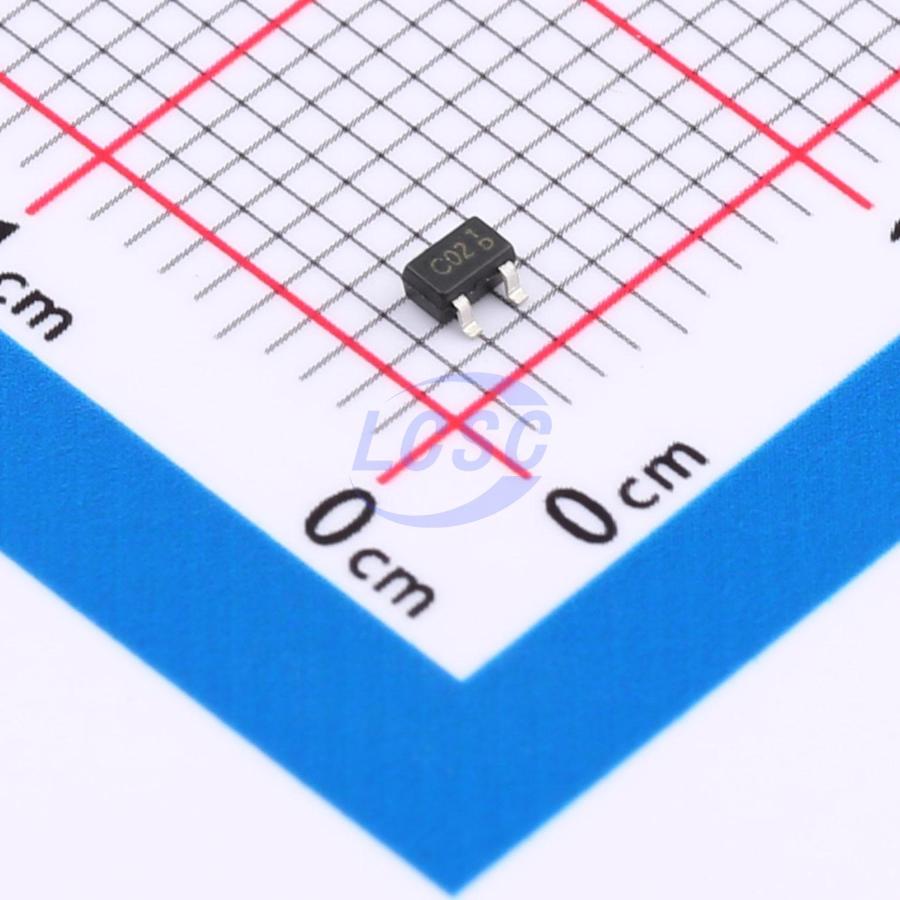

ESDCAN02-2BWY
40VC Clamp 3A@8/20us Ipp SOT-323
SOT-323RoHSActive
24VWM 40VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDCAN02-2BWY
- Store part #
- C41407964
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,365 in stock
#C41407964
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.91 | ₹74.55 |
| 50+ | ₹11.72 | ₹586.00 |
| 150+ | ₹10.13 | ₹1,519.50 |
| 500+ | ₹8.94 | ₹4,470.00 |
| 3,000+ | ₹7.98 | ₹23,940.00 |
| 6,000+ | ₹7.50 | ₹45,000.00 |
5 × ₹14.91
₹74.55
excl. GST
₹87.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDCAN02-2BWY
₹74.55 for 5 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 32V
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Applications
- CAN Bus Protection
- Automotive Applications
Key features
- Ultra low leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 3A (8/20μs)
- RoHS Compliant
