TECH PUBLICDatasheet (PDF)

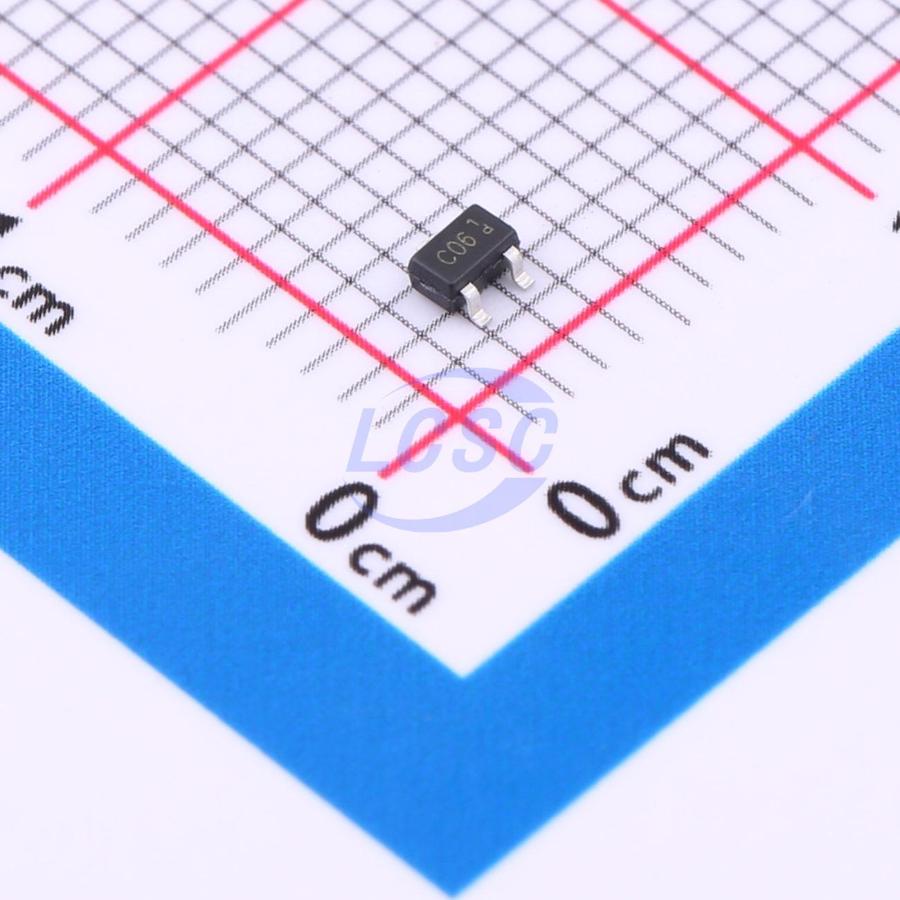

ESDCAN05-2BWY
45VC Clamp ESD DIODE SOT-323
SOT-323RoHSActive
ESD DIODE 36VWM 45VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDCAN05-2BWY
- Store part #
- C5380667
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,025 in stock
#C5380667
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.06 | ₹95.30 |
| 50+ | ₹15.06 | ₹753.00 |
| 150+ | ₹13.04 | ₹1,956.00 |
| 500+ | ₹11.54 | ₹5,770.00 |
| 3,000+ | ₹10.33 | ₹30,990.00 |
| 6,000+ | ₹9.74 | ₹58,440.00 |
5 × ₹19.06
₹95.30
excl. GST
₹112.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDCAN05-2BWY
₹95.30 for 5 + GST
Specifications
- Clamping Voltage
- 45V
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Voltage - Breakdown
- 38V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Applications
- CAN Bus Protection
- Automotive Appllcatrons
Key features
- Ultra low leakage: nA level
- Operating voltage: 36V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 7A (8/20μs)
- RoHS Compliant
