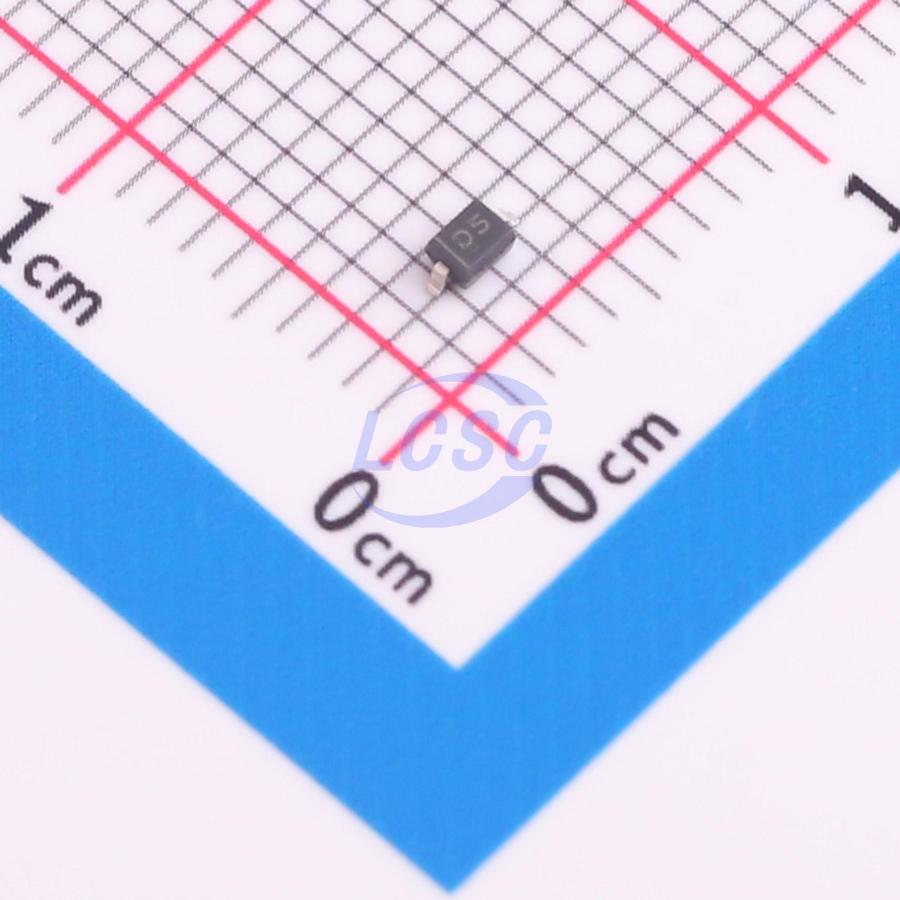

JSCJ

ESDD5V0D3

20VC Clamp 160A Ipp ESD DIODE SOD-323

SOD-323ROHS CompliantActive

ESD DIODE 5VWM 20VC SOD-323

Manufacturer: JSCJ
Manufacturer part #: ESDD5V0D3
Store part #: C5295646
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,690 in stock

#C5295646

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
10+	₹9.99	₹99.90
100+	₹8.32	₹832.00
300+	₹7.49	₹2,247.00
3,000+	₹6.87	₹20,610.00
6,000+	₹6.36	₹38,160.00
9,000+	₹6.11	₹54,990.00

Quantity (min 10, multiples of 10)

10 × ₹9.99

₹99.90

excl. GST

₹117.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESDD5V0D3

₹99.90 for 10 + GST

Specifications

Clamping Voltage: 20V
Peak Pulse Current (Ipp): 160A
Peak Pulse Power Dissipation (Ppp): 3.52kW
Number of Channels: 1
Voltage - Breakdown: 6V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 20uA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.03 g
