onsemiDatasheet (PDF)

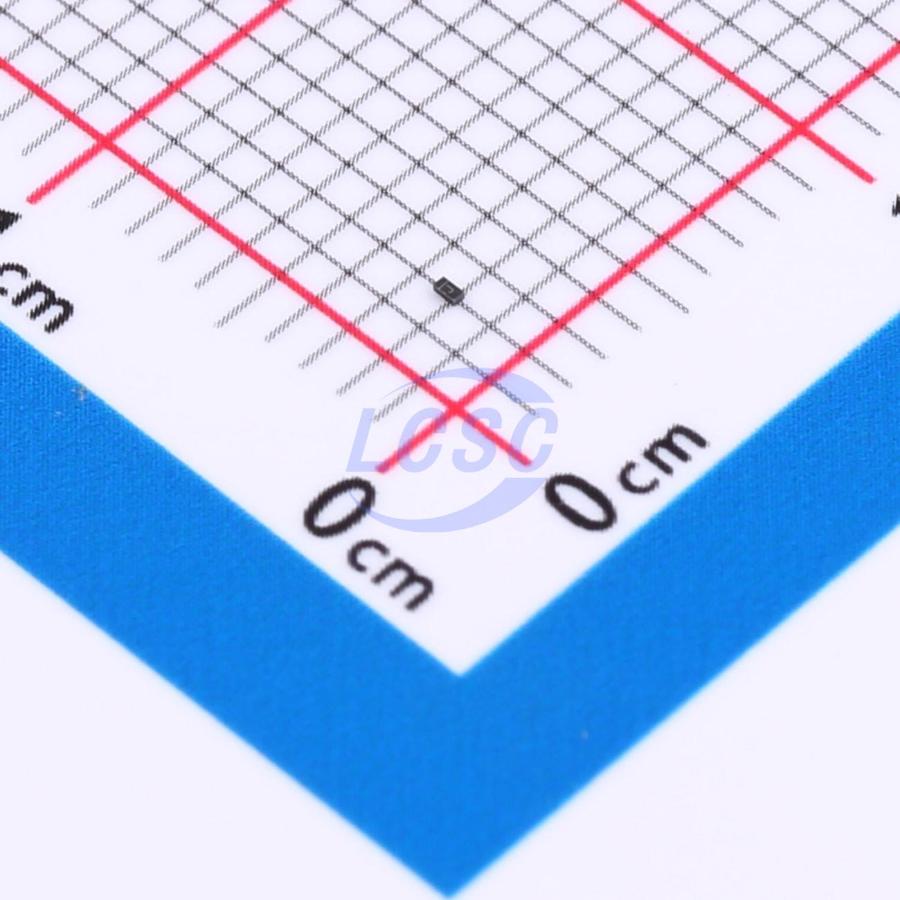

ESDL2031MX4T5G
7.4VC Clamp 9.75A Ipp ESD DIODE DFN-2(0.3x0.6)
DFN-2(0.3x0.6)ROHS3 CompliantActive
ESD DIODE 4VWM 7.4VC DFN-2(0.3x0.6)
- Manufacturer
- onsemi
- Manufacturer part #
- ESDL2031MX4T5G
- Store part #
- C896712
- Package / case
- DFN-2(0.3x0.6)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C896712
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.65 | ₹68.25 |
| 50+ | ₹13.31 | ₹665.50 |
| 150+ | ₹13.07 | ₹1,960.50 |
| 500+ | ₹12.85 | ₹6,425.00 |
5 × ₹13.65
₹68.25
excl. GST
₹80.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ESDL2031MX4T5G
₹68.25 for 5 + GST
Specifications
- Clamping Voltage
- 7.4V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 9.75A
- Peak Pulse Power Dissipation (Ppp)
- 72W
- Voltage - Breakdown
- 8.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
The ESDL2031 ESD protection diodes are designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines.
Applications
- USB 3.x
- MHL 2.0
- SATA/SAS
- PCI Express
- HDMI
Key features
- Ultra Low Capacitance (0.40 pF Typ, I/O to GND)
- Protection for the Following IEC Standards: IEC 61000−4−2 (Level 4)
- Low ESD Clamping Voltage
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
