HXY MOSFETDatasheet (PDF)

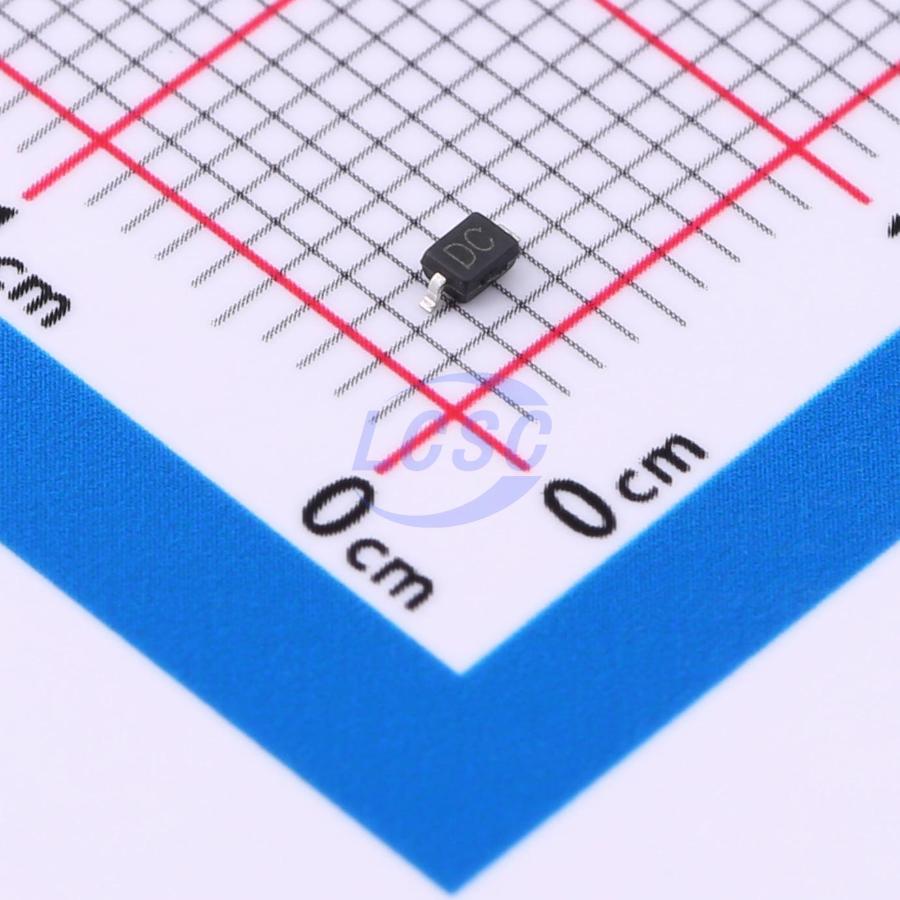

ESDLC12VD3B-HXY
28.6VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 12VWM 28.6VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- ESDLC12VD3B-HXY
- Store part #
- C42416201
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C42416201
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.36 | ₹61.80 |
| 50+ | ₹9.84 | ₹492.00 |
| 150+ | ₹8.59 | ₹1,288.50 |
| 500+ | ₹7.65 | ₹3,825.00 |
| 3,000+ | ₹6.89 | ₹20,670.00 |
| 6,000+ | ₹6.52 | ₹39,120.00 |
5 × ₹12.36
₹61.80
excl. GST
₹72.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDLC12VD3B-HXY
₹61.80 for 5 + GST
Specifications
- Clamping Voltage
- 28.6V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13.3V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
