ESDS312DBVR

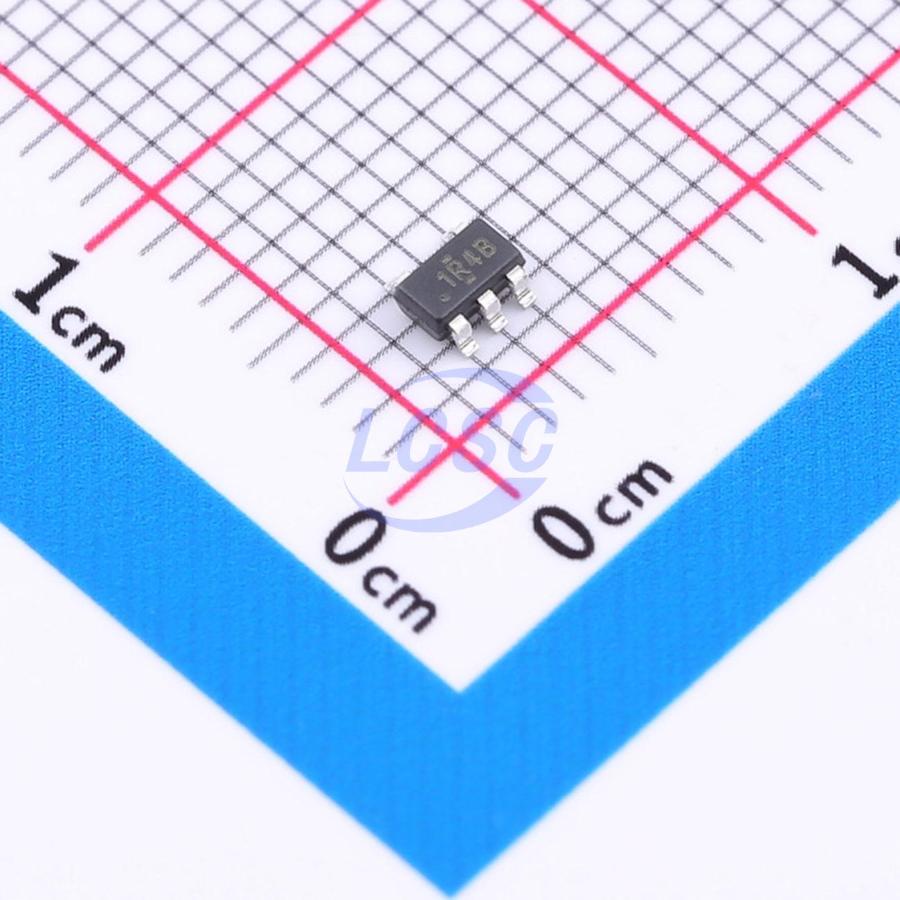

6.5VC Clamp 25A@8/20us Ipp ESD DIODE SOT-23-5
ESD DIODE 3.6VWM 6.5VC SOT-23-5
- Manufacturer
- TI
- Manufacturer part #
- ESDS312DBVR
- Store part #
- C1976412
- Package / case
- SOT-23-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,560 in stock
#C1976412
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.45 | ₹172.25 |
| 50+ | ₹27.27 | ₹1,363.50 |
| 150+ | ₹23.76 | ₹3,564.00 |
| 500+ | ₹20.63 | ₹10,315.00 |
| 3,000+ | ₹19.77 | ₹59,310.00 |
| 6,000+ | ₹19.25 | ₹1,15,500.00 |
5 × ₹34.45
₹172.25
excl. GST
₹203.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDS312DBVR
₹172.25 for 5 + GST
Specifications
- Clamping Voltage
- 6.5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 170W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 7.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The ESDS31x devices are unidirectional TVS ESD protection diode arrays for surge protection of Ethernet, USB, and general-purpose data lines up to 25A (8/20μs). The ESDS31x devices are designed to dissipate ESD shocks higher than the maximum level specified in the IEC61000-4-2 international standard (Level 4). These devices feature an IO capacitance of 4.5pF per channel, making them well-suited for protecting high-speed interfaces such as Ethernet 10/100/1000, USB 2.0, and GPIO. Low dynamic resistance and low clamping voltage support system-level protection against transient events.
Applications
- End devices:
- Ethernet switches
- Access points
- Gateways
- Printers
- DVRs and NVRs
- Interfaces:
- Ethernet 10/100/1000Mbps
- USB 2.0
- GPIO
Key features
- IEC61000-4-2 ESD protection:
- ±30kV contact discharge
- ±30kV air-gap discharge
- IEC61000-4-4 EFT protection:
- 80A (5/50ns)
- IEC61000-4-5 surge protection:
- 25A (8/20μs)
- IO capacitance:
- 4.5pF (typical)
- DC breakdown voltage: 5.5V (minimum)
- Ultra-low leakage current: 5nA (typical)
- Supports high-speed interfaces up to 5Gbps
- Industrial temperature range: -40°C to +125°C
- Simple pass-through package (ESDS312)
