ESDS314DBVR

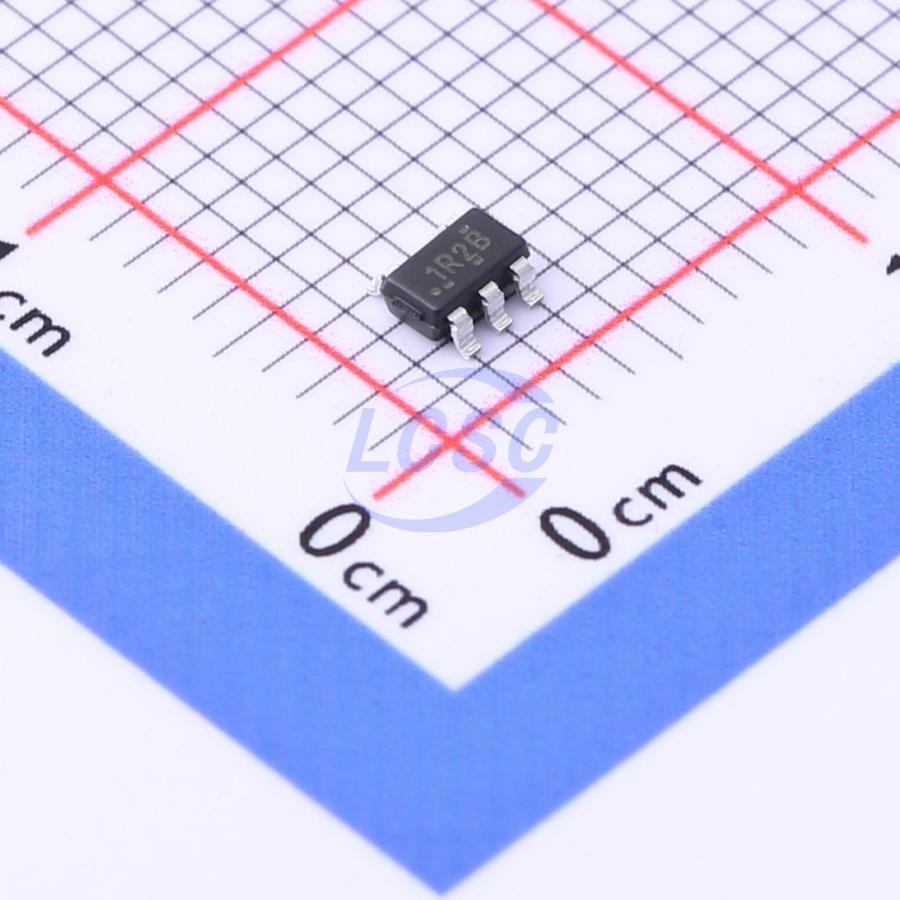

6.5VC Clamp 25A@8/20us Ipp ESD DIODE SOT-23-5
ESD DIODE 3.6VWM 6.5VC SOT-23-5
- Manufacturer
- TI
- Manufacturer part #
- ESDS314DBVR
- Store part #
- C1847859
- Package / case
- SOT-23-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,405 in stock
#C1847859
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.29 | ₹256.45 |
| 50+ | ₹42.02 | ₹2,101.00 |
| 150+ | ₹38.04 | ₹5,706.00 |
| 500+ | ₹33.08 | ₹16,540.00 |
| 3,000+ | ₹30.87 | ₹92,610.00 |
| 6,000+ | ₹29.54 | ₹1,77,240.00 |
5 × ₹51.29
₹256.45
excl. GST
₹302.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDS314DBVR
₹256.45 for 5 + GST
Specifications
- Clamping Voltage
- 6.5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 170W@8/20us
- Voltage - Breakdown
- 7.5V
- Number of Channels
- Four channels
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The ESDS31x devices are unidirectional TVS ESD protection diode arrays for surge protection of Ethernet, USB, and general-purpose data lines up to 25A (8/20μs). The ESDS31x devices are designed to dissipate ESD shocks higher than the maximum level specified in the IEC61000-4-2 international standard (Level 4). These devices feature an IO capacitance of 4.5pF per channel, making them well-suited for protecting high-speed interfaces such as Ethernet 10/100/1000, USB 2.0, and GPIO. Low dynamic resistance and low clamping voltage support system-level protection against transient events.
Applications
- End devices:
- Ethernet switches
- Access points
- Gateways
- Printers
- DVRs and NVRs
- Interfaces:
- Ethernet 10/100/1000Mbps
- USB 2.0
- GPIO
Key features
- IEC61000-4-2 ESD protection:
- ±30kV contact discharge
- ±30kV air-gap discharge
- IEC61000-4-4 EFT protection:
- 80A (5/50ns)
- IEC61000-4-5 surge protection:
- 25A (8/20μs)
- IO capacitance:
- 4.5pF (typical)
- DC breakdown voltage: 5.5V (minimum)
- Ultra-low leakage current: 5nA (typical)
- Supports high-speed interfaces up to 5Gbps
- Industrial temperature range: -40°C to +125°C
- Simple pass-through package (ESDS312)
