TECH PUBLICDatasheet (PDF)

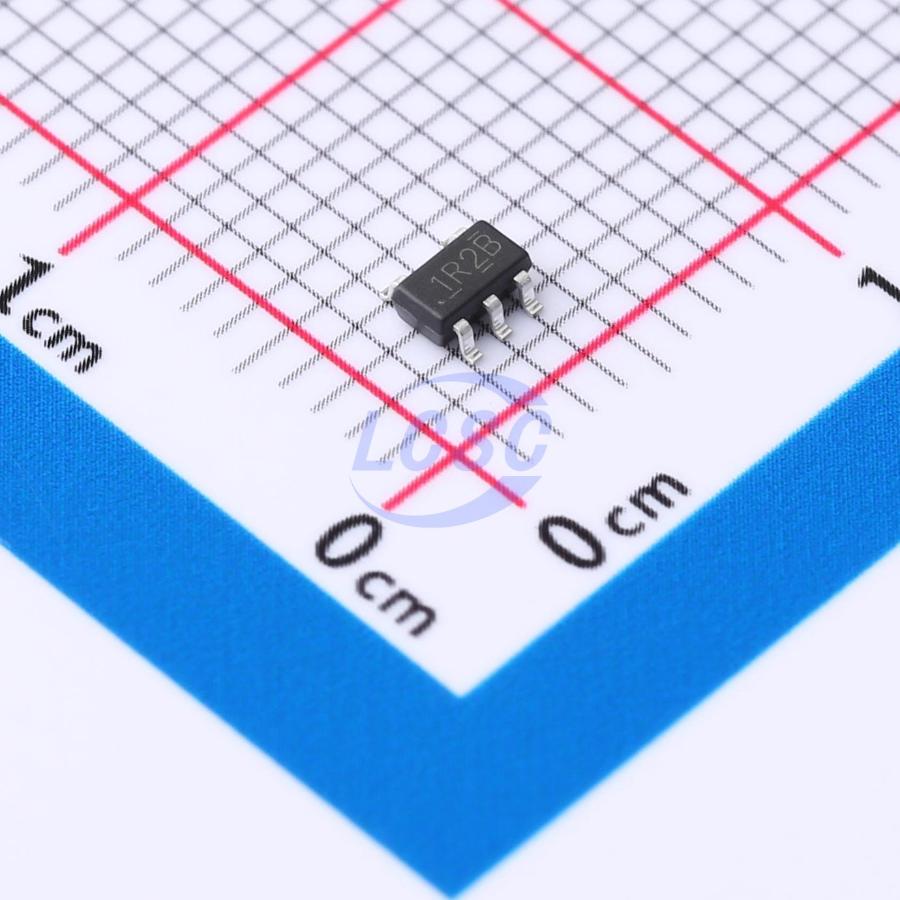

ESDS314DBVR-TP
5VC 12VC Clamp 25A@8/20us Ipp SOT-23-5
SOT-23-5RoHSActive
3.6VWM 5VC 12VC SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDS314DBVR-TP
- Store part #
- C5310975
- Package / case
- SOT-23-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C5310975
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.71 | ₹178.55 |
| 50+ | ₹28.50 | ₹1,425.00 |
| 150+ | ₹25.40 | ₹3,810.00 |
| 500+ | ₹21.54 | ₹10,770.00 |
| 3,000+ | ₹18.50 | ₹55,500.00 |
| 6,000+ | ₹17.46 | ₹1,04,760.00 |
5 × ₹35.71
₹178.55
excl. GST
₹210.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDS314DBVR-TP
₹178.55 for 5 + GST
Specifications
- Clamping Voltage
- 5V;12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 450W@8/20us
- Voltage - Breakdown
- 7.5V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Applications
- Ethernet Switches
- Access Points
- Gateways
- Printers
- DVR and NVR
Key features
- Ultralow leakage: nA level
- Ultralow operating voltage: 5.5V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC 61000 - 4 - 4 (EFT) 80A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 25A (8/20μs)
- RoHS Compliant
