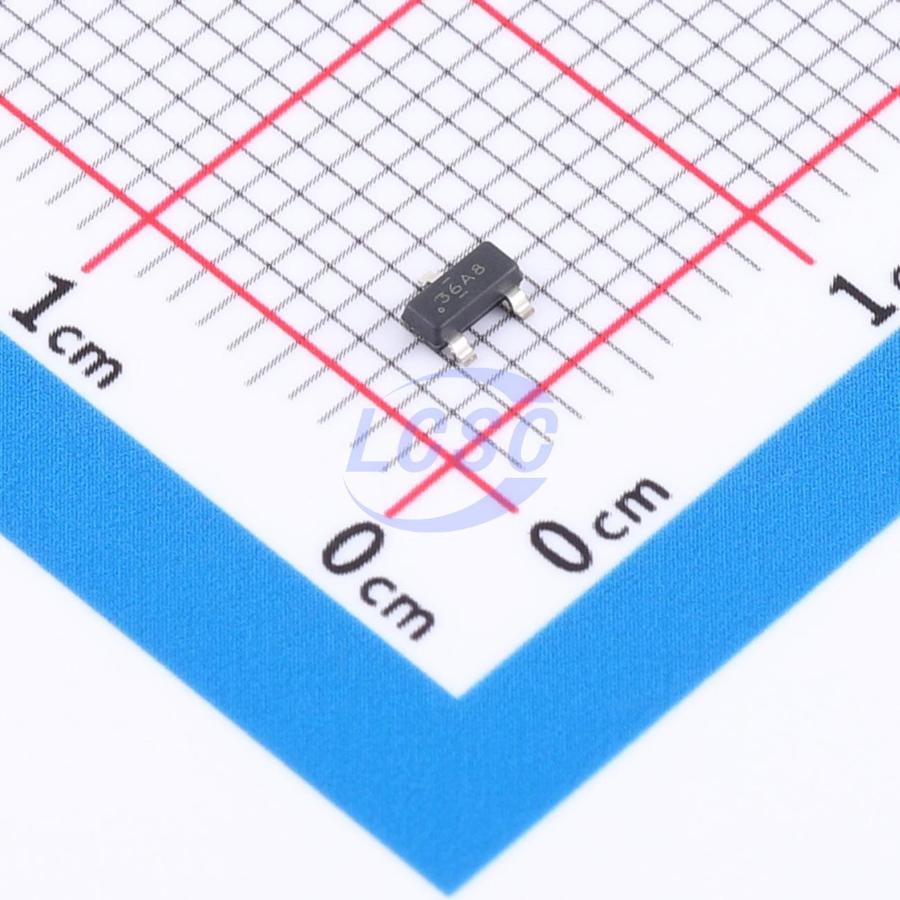

ESDS552DBZR

23.5VC Clamp 25A@8/20us Ipp ESD DIODE SOT-23

SOT-23ROHS CompliantActive

ESD DIODE 12VWM 23.5VC SOT-23

Manufacturer: TI
Manufacturer part #: ESDS552DBZR
Store part #: C34916166
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,400 in stock

#C34916166

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹32.57	₹162.85
50+	₹25.79	₹1,289.50
150+	₹22.46	₹3,369.00
500+	₹19.50	₹9,750.00
3,000+	₹18.69	₹56,070.00
6,000+	₹18.20	₹1,09,200.00

Quantity (min 5, multiples of 5)

5 × ₹32.57

₹162.85

excl. GST

₹192.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESDS552DBZR

₹162.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 23.5V
Operating Temperature: -40℃~+125℃
Peak Pulse Current (Ipp): 25A@8/20us
Peak Pulse Power Dissipation (Ppp): 500W@8/20us
Number of Channels: 2
Voltage - Breakdown: 18V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 10nA;50nA
Reverse Stand-Off Voltage (Vrwm): 12V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.032 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	RLST23A122C#C20754RUILON · SOT-23	RUILON	SOT-23	1,570	₹26.46 · 1,570 in stock	View
	TPE1272BS3#C2936985TECH PUBLIC · SOT-23	TECH PUBLIC	SOT-23	2,960	₹11.11 · 2,960 in stock	View
	CDSOT23-T12C-ES#C41409333ElecSuper · SOT-23	ElecSuper	SOT-23	2,710	₹5.49 · 2,710 in stock	View
	PSM712-LF-T7#C41365183ElecSuper · SOT-23	ElecSuper	SOT-23	16,740	₹4.30 · 16,740 in stock	View
	SM12CC#C51927814Slkor · SOT-23	Slkor	SOT-23	3,000	₹4.72 · 3,000 in stock	View
