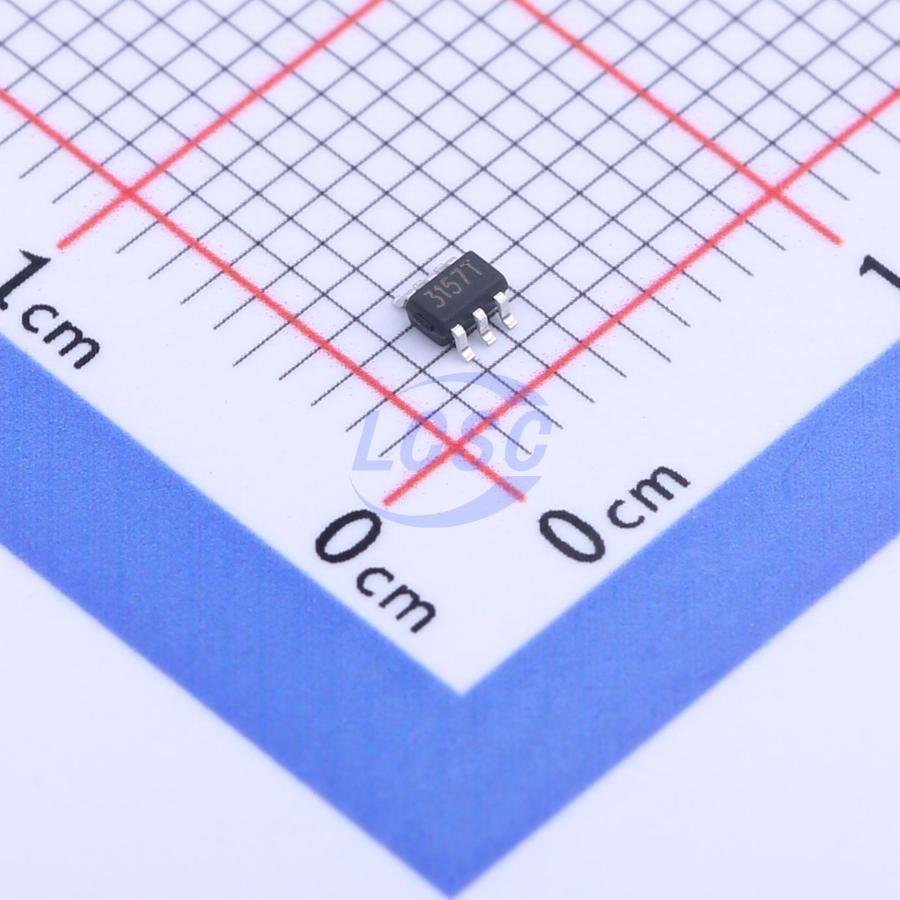

ET3157

ET3157 is an analog switch based on CMOS technology. It features low power consumption, low propagation delay, and low output impedance. The voltage output range for both analog and digital signals can start from VCC or GND. The select input features overvoltage protection, allowing input voltages above VCC up to 7V without pin damage.

Key features

• Low power consumption
• High transmission speed
• Inverted standard CMOS logic levels
• High bandwidth, high linearity
• Switching for NTSC/PAL video, audio, SPDIF, and HDTV
• SC70-6 package
• Suitable for clock switching and data selection switching
• Low output impedance
• Break-before-make protection against short circuits
• Operating temperature range: -55°C ~ +125°C
