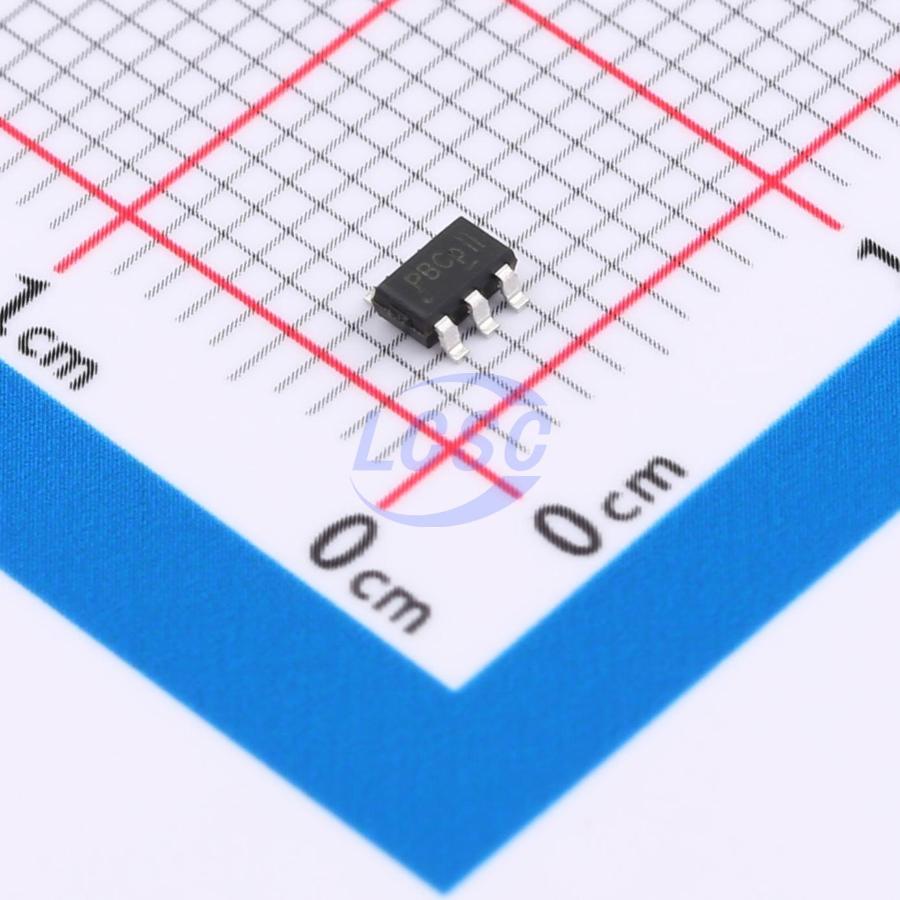

ETA1061S2G

ETA1061 is a high efficiency synchronous step-up converter with ultra-low quiescent current down to 1μA. It is capable of delivering at least 2W of power from a low voltage source, i.e. 0.4A at 5V output. It also features a true-shutoff function that disconnects the input from output, during shutdown and output short-circuit conditions. This eliminates the need for an external MOSFET and its control circuitry to disconnect the input from output and provides robust output overload protection. A switching frequency of 1.4MHz minimizes solution footprint by allowing the use of tiny and low profile inductors and ceramic capacitors. An internal synchronous MOSFET provides highest efficiency and with a current mode control that is internally compensated, external parts count is reduced to minimal. With the ultra-low Iq feature, ETA1061 is ideal for solution that requires low standby power and compact board size such as IoT applications.

Applications

• Tablet
• MID
• Smart Phone
• Power Bank

Key features

• Ultra low IQ when No Switching: 1uA for adjustable version and 1.2uA for fixed voltage version
• 0.8V Startup
• 5V/0.4A Output Capability at Vin = 3V
• Output to Input Reversed Current Protection
• Up to 94% Efficiency
• Internal Synchronous Rectifier and Output Disconnect
• Short-circuit Protection
• Adjustable version and Fixed voltage version
• SOT23 - 6 & DFN2x2 - 6 Package
