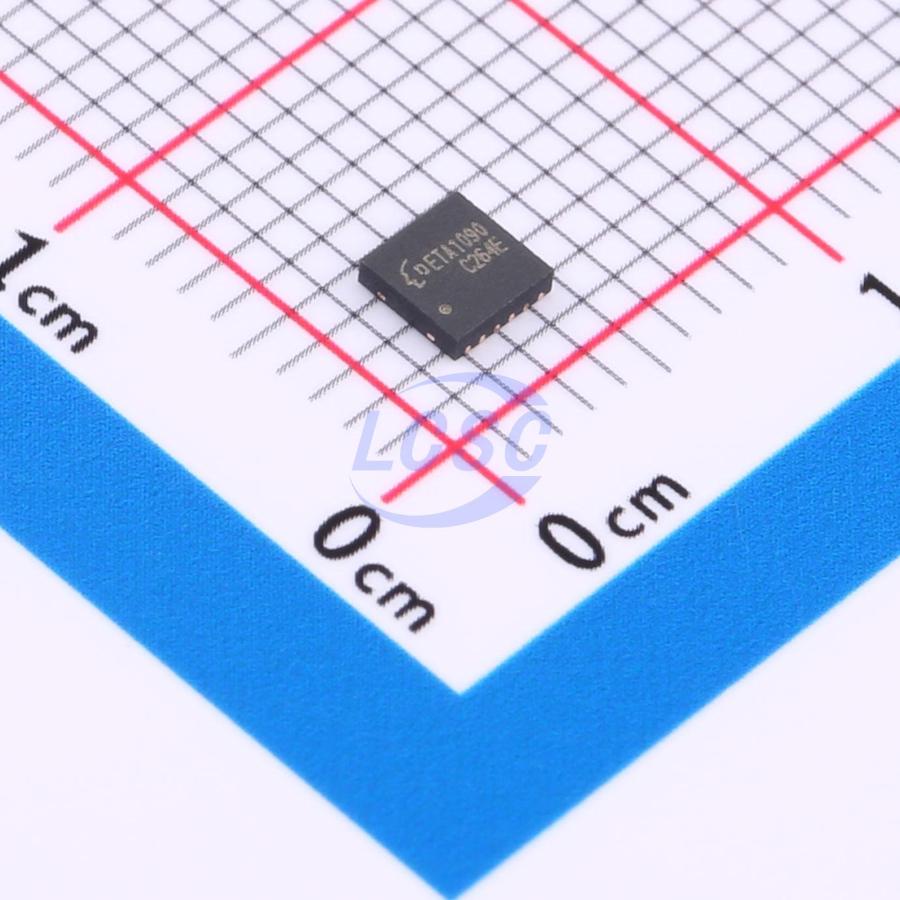

ETA1090D3M

ETA1090 is a high efficiency, high frequency synchronous Step-Up converter, capable of delivering output current up to 3A at a 5V output from a 3.6V input. With a low Rdson Power MOS and a built-in synchronous rectifier, its efficiency can be as high as 91% at a 5V/2.1A load. This greatly minimizes power dissipation and reduces heat on the IC, making it ideal for applications that require small board space and have stringent temperature constraints, such as power banks and mobile devices. ETA1090 also incorporates True-Shutoff technology that protects against overload and short-circuit conditions. All of these features are integrated in a tiny DFN3x3-12 package. With 1MHz switching frequency, small external input and output capacitors and inductor can be used.

Applications

• 3G/4G PCI-e module
• Power Bank
• Mobile 3G/4G Mi-Fi
• Mobile Bluetooth music player and speaker

Key features

• Up to 97% Energy Converting Efficiency
• Up to 3A output current at 5V output, 3.6V input
• Externally adjustable output voltage
• True Shut off during shutdown and output short-circuit protection
• Thermal Shutdown
• DFN3x3-12 Package
