etasolution

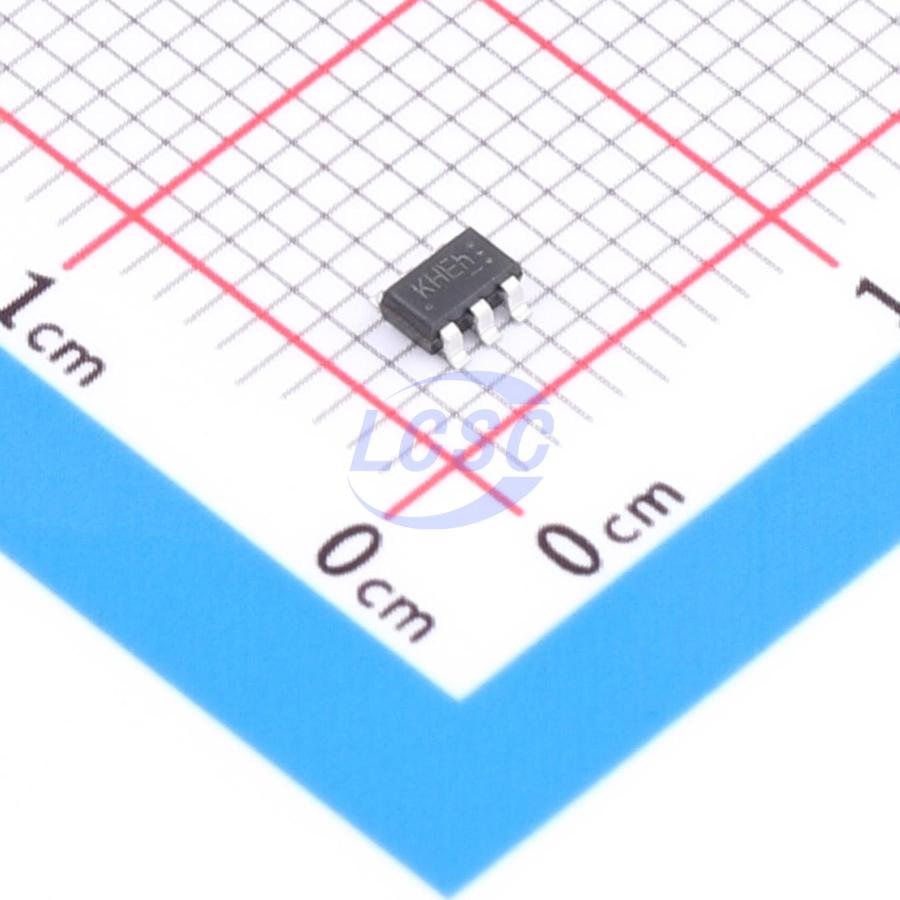

ETA1458S2G

Step-down type 600kHz Adjustable 768mV~5.5V 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Manufacturer: etasolution
Manufacturer part #: ETA1458S2G
Store part #: C42436800
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,230 in stock

#C42436800

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.83	₹69.15
50+	₹10.85	₹542.50
150+	₹9.37	₹1,405.50
500+	₹8.26	₹4,130.00
3,000+	₹7.37	₹22,110.00
6,000+	₹6.92	₹41,520.00

Quantity (min 5, multiples of 5)

5 × ₹13.83

₹69.15

excl. GST

₹81.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA1458S2G

₹69.15 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Function: Step-down type
Frequency - Switching: 600kHz
Number of Outputs: 1
Features: Light load efficient mode;Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 768mV~5.5V
Output Current: 3A
Quiescent Current: 210uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.164 g

Overview

ETA1458 is a wide input range, high efficiency, high frequency DC-DC step-down switching regulator capable of delivering up to 3A output current. It employs an adaptive constant on-time control scheme to achieve ultra-fast transient response and provides very smooth transitions as the output load changes from light to heavy. Under light load conditions, ETA1458 enters pulse frequency modulation mode to reduce switching losses and maintain high efficiency. The adaptive constant on-time control also maintains a constant switching frequency across varying input voltages and load conditions. The overvoltage protection feature safeguards both the IC itself and its downstream systems against input voltage surges. With this overvoltage protection capability, the device can withstand input voltages up to 19V, making it an ideal solution for industrial applications such as LCD TVs, set-top boxes, and portable televisions. The device is available in a SOT23-6 package.
