etasolutionDatasheet (PDF)

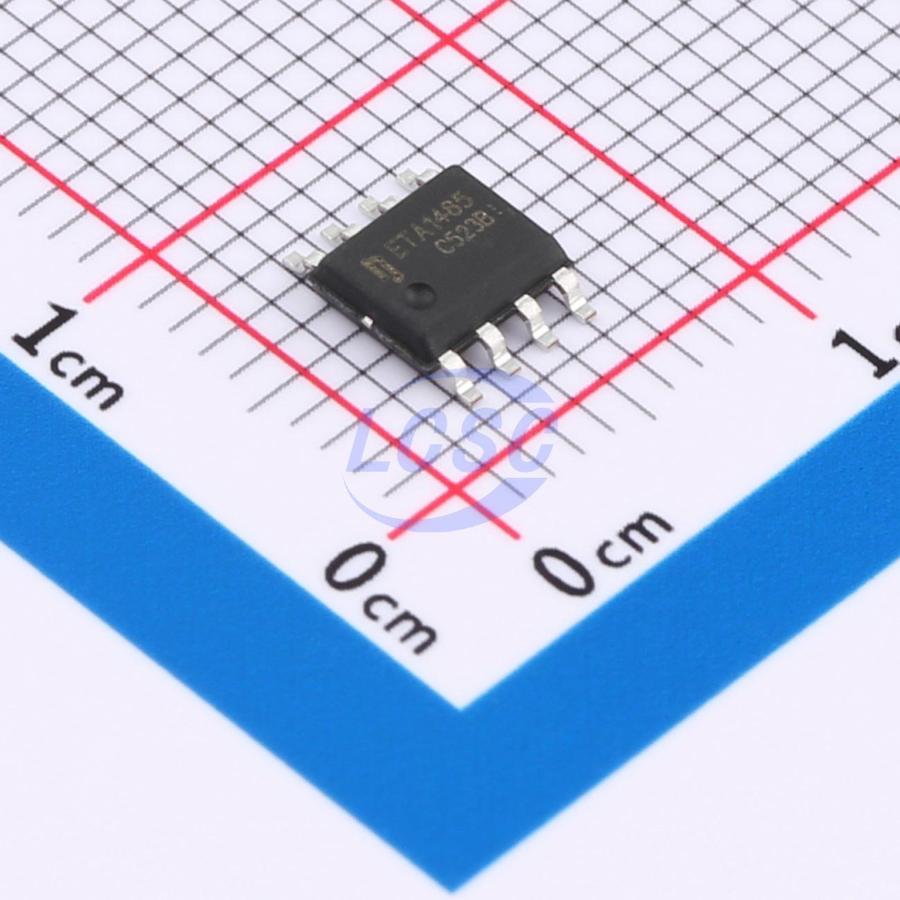

ETA1485E8A
340kHz Step-down type Adjustable 3A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
3A, 18V High Efficiency Synchronous Step-Down Converter
- Manufacturer
- etasolution
- Manufacturer part #
- ETA1485E8A
- Store part #
- C7465506
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,270 in stock
#C7465506
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.16 | ₹230.80 |
| 50+ | ₹38.43 | ₹1,921.50 |
| 150+ | ₹35.13 | ₹5,269.50 |
| 500+ | ₹31.00 | ₹15,500.00 |
| 2,500+ | ₹29.16 | ₹72,900.00 |
| 4,000+ | ₹28.05 | ₹1,12,200.00 |
5 × ₹46.16
₹230.80
excl. GST
₹272.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ETA1485E8A
₹230.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 340kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.6V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.175 g
Overview
The ETA1485 is a wide input range, high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. Current mode PWM control allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing low output ripples. On top of the integrated internal synchronous rectifier that eliminates external Schottky diode, ETA1485 also employs a proprietary control scheme that switches the device into a power save mode during light load, thereby extending the range of high efficiency operation. Therefore, ETA1485 is a much superior solution in comparison to other competitions in terms of efficiency and cost. Overall, ETA1485 is a highly efficient and robust solution for DC-DC step-down applications that requires wide input ranges. ETA1485 is available ESOP8 Packages.
Applications
- LCD TVs
- Notebook computers
- FPGA power supplies
- LED drivers
Key features
- Wide Input Operating Range from 3.6V to 18V
- High Efficiency: Up to 90% at Light Load
- Capable of Delivering 3A
- No External Schottky Diode Needed
- Current Mode control
- 0.923V Reference for Low Output voltages
- Logic Control Shutdown
- Thermal shutdown and UVLO
- Available in ESOP8 Package
